Axle Shaft: Removal

WARNING: This page is about a different car, the 2023 Ford Transit-350 HD, 2023 Ford Transit-350, 2023 Ford Transit-250, and 2023 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel and tire. Refer to: Wheel and Tire .
  2. Index-mark the axle shaft flange and the wheel hub to maintain alignment during installation

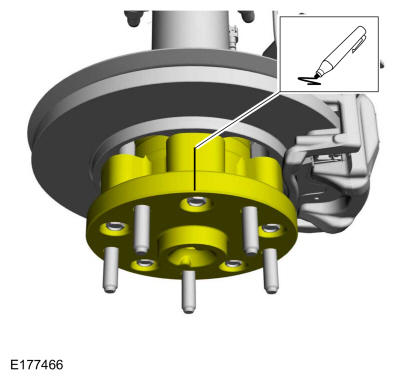

    GFD783339Courtesy of FORD MOTOR COMPANY

    Vehicles with single rear wheels

  3. Remove and discard the axle shaft bolts and remove the axle shaft.

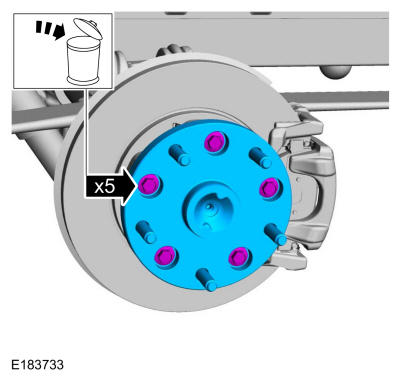

    GFD783340Courtesy of FORD MOTOR COMPANY

    Vehicles with DRW and SRW Jumbo

  4. Remove and discard the axle shaft bolts and remove the axle shaft.

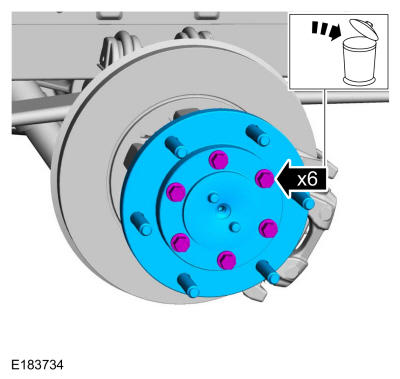

    GFD783341Courtesy of FORD MOTOR COMPANY

    Vehicles with Drum In Hat Parking Brake

  5. NOTE: Be prepared to collect escaping fluid.

    Remove and discard the axle shaft bolts and remove the axle shaft.

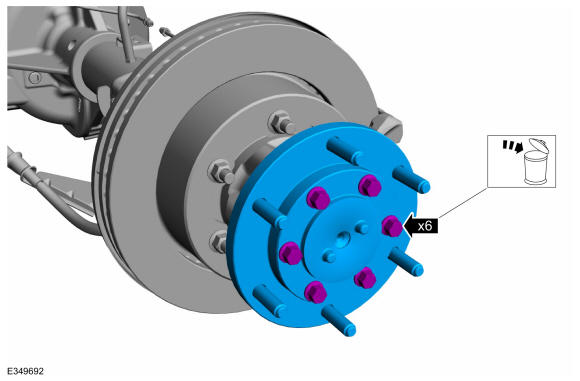

GFD783342Courtesy of FORD MOTOR COMPANY
