Parking Aid

Fig 1: Parking Aid Wiring Diagram (1 Of 33)

GFDWR213702

Courtesy of FORD MOTOR COMPANY

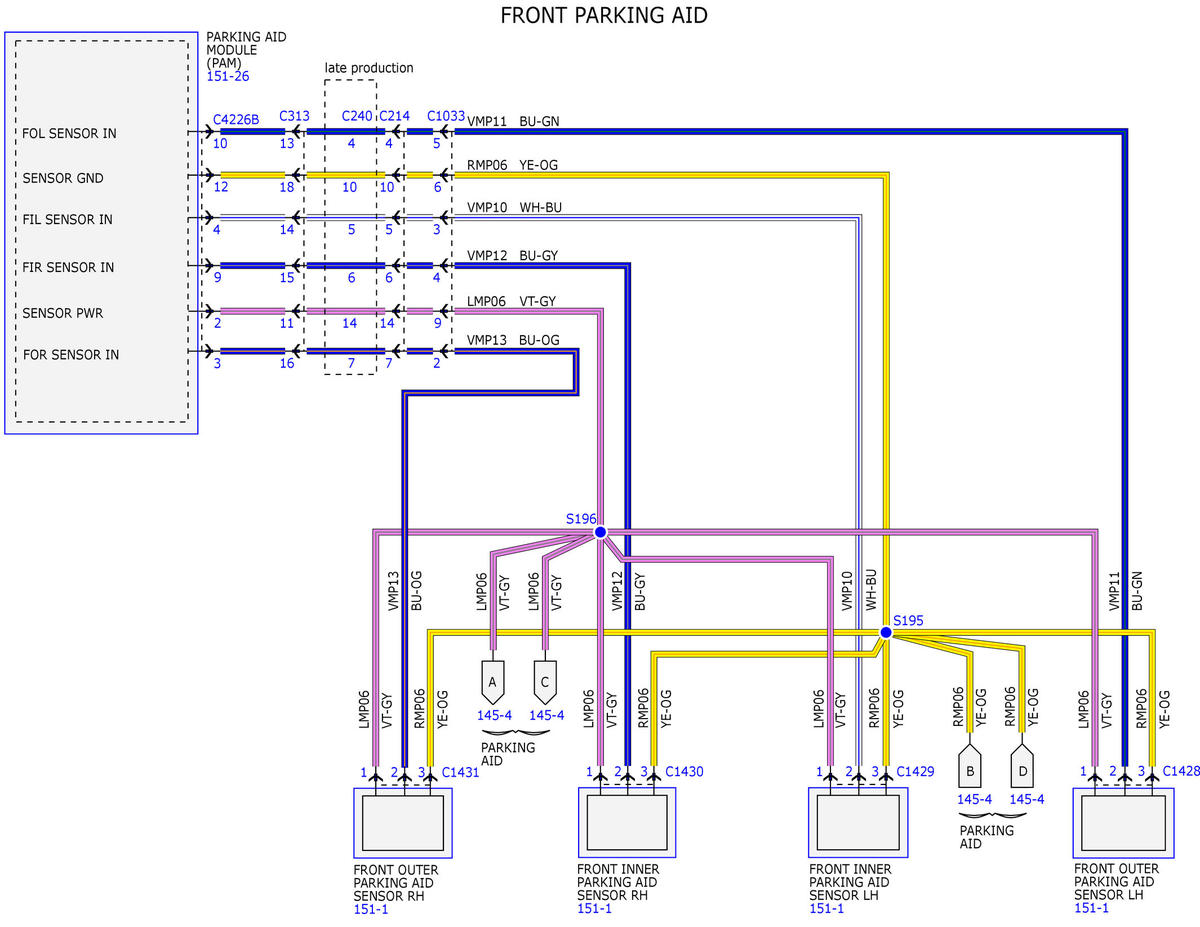

Fig 2: Parking Aid Wiring Diagram (2 Of 33)

GFDWR213713

Courtesy of FORD MOTOR COMPANY

Fig 3: Parking Aid Wiring Diagram (3 Of 33)

GFDWR213724

Courtesy of FORD MOTOR COMPANY

Fig 4: Parking Aid Wiring Diagram (4 Of 33)

GFDWR213729

Courtesy of FORD MOTOR COMPANY

Fig 5: Parking Aid Wiring Diagram (5 Of 33)

GFDWR213730

Courtesy of FORD MOTOR COMPANY

Fig 6: Parking Aid Wiring Diagram (6 Of 33)

GFDWR213731

Courtesy of FORD MOTOR COMPANY

Fig 7: Parking Aid Wiring Diagram (7 Of 33)

GFDWR213732

Courtesy of FORD MOTOR COMPANY

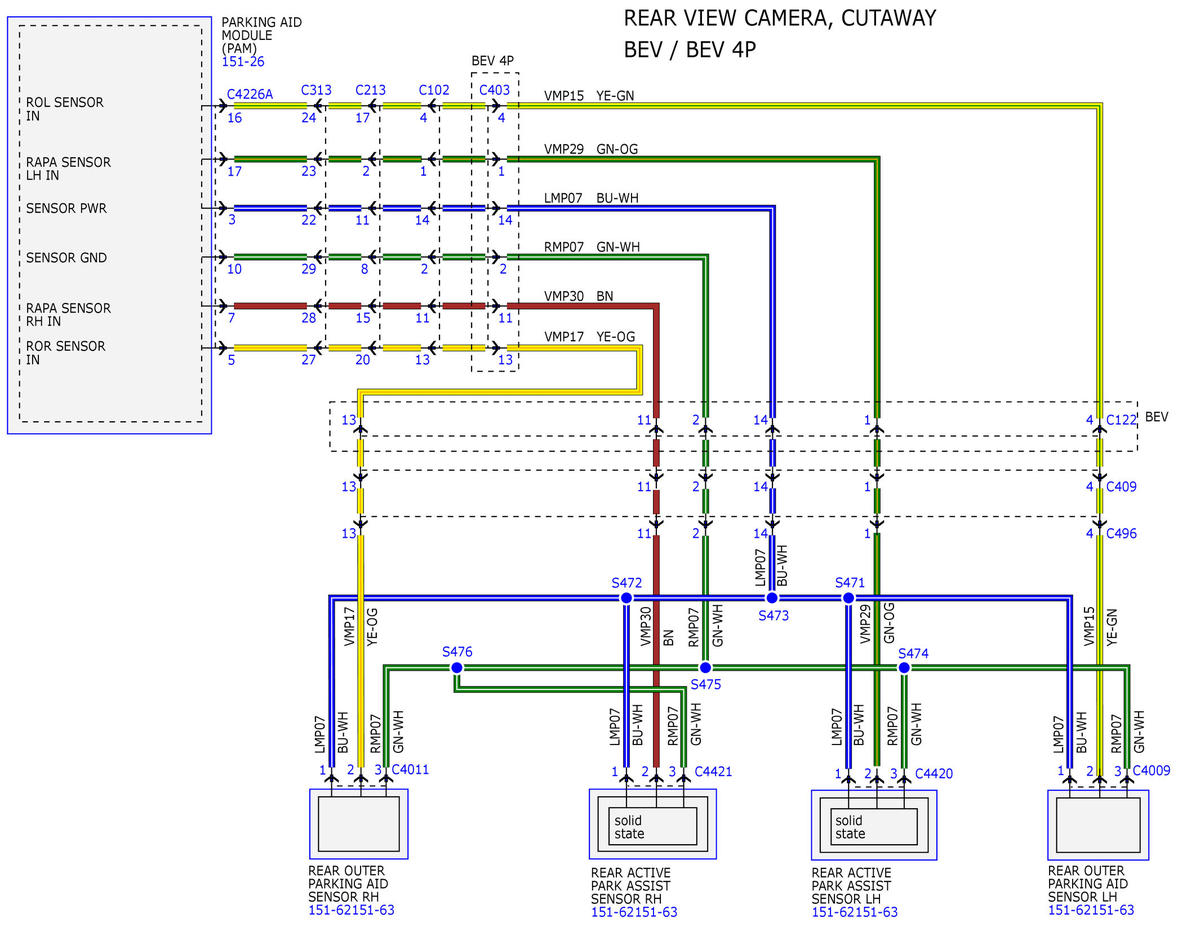

Fig 8: Parking Aid Wiring Diagram (8 Of 33)

GFDWR213733

Courtesy of FORD MOTOR COMPANY

Fig 9: Parking Aid Wiring Diagram (9 Of 33)

GFDWR213734

Courtesy of FORD MOTOR COMPANY

Fig 10: Parking Aid Wiring Diagram (10 Of 33)

GFDWR213703

Courtesy of FORD MOTOR COMPANY

Fig 11: Parking Aid Wiring Diagram (11 Of 33)

GFDWR213704

Courtesy of FORD MOTOR COMPANY

Fig 12: Parking Aid Wiring Diagram (12 Of 33)

GFDWR213705

Courtesy of FORD MOTOR COMPANY

Fig 13: Parking Aid Wiring Diagram (13 Of 33)

GFDWR213706

Courtesy of FORD MOTOR COMPANY

Fig 14: Parking Aid Wiring Diagram (14 Of 33)

GFDWR213707

Courtesy of FORD MOTOR COMPANY

Fig 15: Parking Aid Wiring Diagram (15 Of 33)

GFDWR213708

Courtesy of FORD MOTOR COMPANY

Fig 16: Parking Aid Wiring Diagram (16 Of 33)

GFDWR213709

Courtesy of FORD MOTOR COMPANY

Fig 17: Parking Aid Wiring Diagram (17 Of 33)

GFDWR213710

Courtesy of FORD MOTOR COMPANY

Fig 18: Parking Aid Wiring Diagram (18 Of 33)

GFDWR213711

Courtesy of FORD MOTOR COMPANY

Fig 19: Parking Aid Wiring Diagram (19 Of 33)

GFDWR213712

Courtesy of FORD MOTOR COMPANY

Fig 20: Parking Aid Wiring Diagram (20 Of 33)

GFDWR213714

Courtesy of FORD MOTOR COMPANY

Fig 21: Parking Aid Wiring Diagram (21 Of 33)

GFDWR213715

Courtesy of FORD MOTOR COMPANY

Fig 22: Parking Aid Wiring Diagram (22 Of 33)

GFDWR213716

Courtesy of FORD MOTOR COMPANY

Fig 23: Parking Aid Wiring Diagram (23 Of 33)

GFDWR213717

Courtesy of FORD MOTOR COMPANY

Fig 24: Parking Aid Wiring Diagram (24 Of 33)

GFDWR213718

Courtesy of FORD MOTOR COMPANY

Fig 25: Parking Aid Wiring Diagram (25 Of 33)

GFDWR213719

Courtesy of FORD MOTOR COMPANY

Fig 26: Parking Aid Wiring Diagram (26 Of 33)

GFDWR213720

Courtesy of FORD MOTOR COMPANY

Fig 27: Parking Aid Wiring Diagram (27 Of 33)

GFDWR213721

Courtesy of FORD MOTOR COMPANY

Fig 28: Parking Aid Wiring Diagram (28 Of 33)

GFDWR213722

Courtesy of FORD MOTOR COMPANY

Fig 29: Parking Aid Wiring Diagram (29 Of 33)

GFDWR213723

Courtesy of FORD MOTOR COMPANY

Fig 30: Parking Aid Wiring Diagram (30 Of 33)

GFDWR213725

Courtesy of FORD MOTOR COMPANY

Fig 31: Parking Aid Wiring Diagram (31 Of 33)

GFDWR213726

Courtesy of FORD MOTOR COMPANY

Fig 32: Parking Aid Wiring Diagram (32 Of 33)

GFDWR213727

Courtesy of FORD MOTOR COMPANY

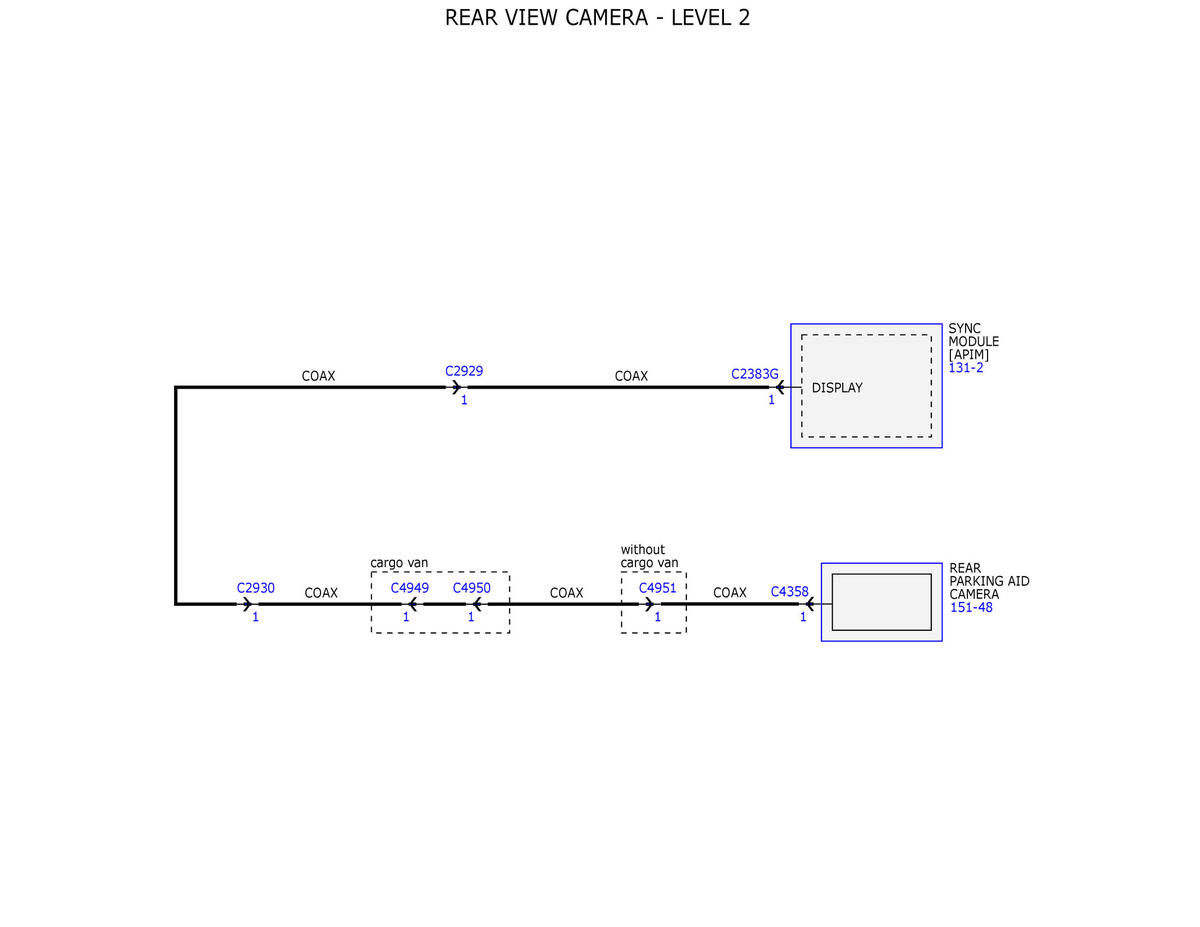

Fig 33: Parking Aid Wiring Diagram (33 Of 33)

GFDWR213728

Courtesy of FORD MOTOR COMPANY
