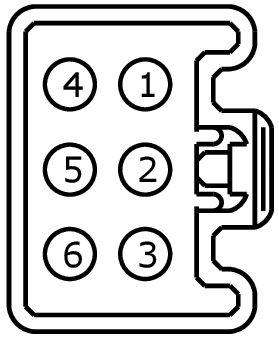

Connector End View C3051 - UPFITTER CONNECTOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3051	UPFITTER CONNECTOR	GY	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CAC17 (VT-GY)	12	WIRE - UPFITTER CUSTOMER ACCESS #5	N/A
2	CAC18 (YE-GY)	12	WIRE - UPFITTER CUSTOMER ACCESS #6	N/A
3	SB153 (GY-RD)	10	FUSE - 53 OR CIRCUIT BREAKER	N/A
4	CAC14 (YE-OG)	10	RELAY - UPFITTER #6	N/A
5	CLS21 (BU-GN)	20	CTRL MOD. - TURN LAMP LEFT FRONT	N/A
6	CLS25 (YE-VT)	20	CTRL MOD. - TURN LAMP RIGHT FRONT	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1722

Service Part Number:

NU2Z-14S411-ACA

Gauge:

10

Pin material:

Tin

Cavities:

6

Vehicle Uses:

• Connector - Customer Access
• Connector - Inline
