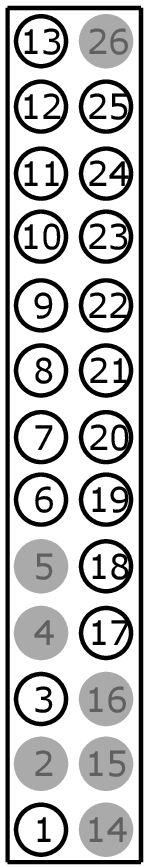

Connector End View C2512B - IMAGE PROCESSING MODULE B (IPMB)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2512B	IMAGE PROCESSING MODULE B (IPMB)	14K024			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBP36 (BU-BN)	18	FUSE - 36 OR CIRCUIT BREAKER	N/A
2	- ()	*	Not Used	N/A
3	CMF06 (BN)	20	CTRL MOD. - SWITCH PARKING AID	N/A
4	- ()	*	Not Used	N/A
5	- ()	*	Not Used	N/A
6	RMP06 (YE-OG)	20	CTRL MOD. - PARKING AID # SENSORS FRONT -	N/A
7	VMP29 (GN-OG)	20	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) REAR LEFT SIDE	N/A
8	VMP15 (YE-GN)	20	SENSOR - PARKING AID # REAR # (LEFT OUTER)	N/A
9	VMP14 (WH-OG)	20	SENSOR - PARKING AID # REAR # (LEFT INNER OR MIDDLE)	N/A
10	VMP16 (YE-GY)	20	SENSOR - PARKING AID # REAR # (RIGHT INNER)	N/A
11	VMP17 (YE-OG)	20	SENSOR - PARKING AID # REAR # (RIGHT OUTER)	N/A
12	VMP30 (BN)	20	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) REAR RIGHT SIDE	N/A
13	GD214 (BK-BU)	18	GROUND - INSTRUMENT PANEL STRUCTURE	N/A
14	- ()	*	Not Used	N/A
15	- ()	*	Not Used	N/A
16	- ()	*	Not Used	N/A
17	LMP07 (BU-WH)	20	CTRL MOD. - PARKING AID # SENSORS REAR +	N/A
18	RMP07 (GN-WH)	20	CTRL MOD. - PARKING AID # SENSORS REAR -	N/A
19	LMP06 (VT-GY)	20	CTRL MOD. - PARKING AID # SENSORS FRONT +	N/A
20	VMP20 (GY-OG)	20	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT LEFT SIDE	N/A
21	VMP11 (BU-GN)	20	SENSOR - PARKING AID # FRONT # (LEFT OUTER)	N/A
22	VMP10 (WH-BU)	20	SENSOR - PARKING AID # FRONT # (LEFT INNER)	N/A
23	VMP12 (BU-GY)	20	SENSOR - PARKING AID # FRONT # (RIGHT INNER)	N/A
24	VMP13 (BU-OG)	20	SENSOR - PARKING AID # FRONT # (RIGHT OUTER)	N/A
25	VMP21 (WH-BN)	20	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT RIGHT SIDE	N/A
26	- ()	*	Not Used	N/A
