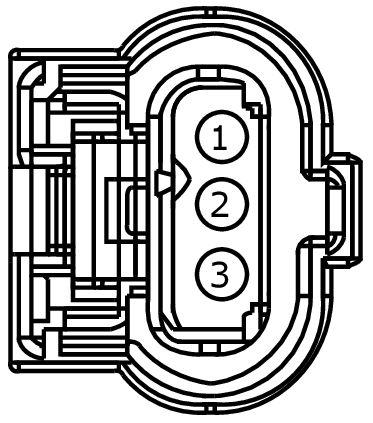

Connector End View C1608 - FRONT ACTIVE PARK ASSIST SENSOR RH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1608 | FRONT ACTIVE PARK ASSIST SENSOR RH | BK | 15K867 | part# N/A | See Below |
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| EU5T-14474-DAB | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | LMP06 (VT-GY) | 20 | CTRL MOD. - PARKING AID # SENSORS FRONT + | EU5T-14474-DAB | ||||
| 2 | VMP21 (GY-OG) | 20 | SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT RIGHT SIDE | Advanced Automated Park System | N/A | |||
| 2 | VMP21 (WH-BN) | 20 | SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT RIGHT SIDE | EU5T-14474-DAB | ||||
| 3 | RMP06 (YE-OG) | 20 | CTRL MOD. - PARKING AID # SENSORS FRONT - | EU5T-14474-DAB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1308
Service Part Number:
CU2Z-14S411-AVA
Gauge:
18
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Coil - Ignition
- Sensor - Fuel Low Pressure
Pigtail Kit Part Number WPT-1752
Service Part Number:
CU2Z-14S411-AVB
Gauge:
18
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Coil - Ignition
- Sensor - Cam Shaft Position
- Sensor - Exhaust Gas Recirculation Temperature
- Sensor - Front Park Aid (FPA)
- Sensor - Fuel Low Pressure
- Sensor - Fuel Rail Pressure
- Sensor - Fuel Rail Pressure Transducer
- Sensor - Oil Level
- Sensor - Oil Pressure
- Sensor - Oil Temperature
- Sensor - Reverse Park Aide (RPA)
- Sensor - Wastegate Pressure
- Valve - High Voltage Battery Coolant Shutoff
