Rear Parking Aid Camera: Removal

Rear door mounted rear view camera

1. Remove the RH rear door moulding. Refer to: Rear Door Moulding .

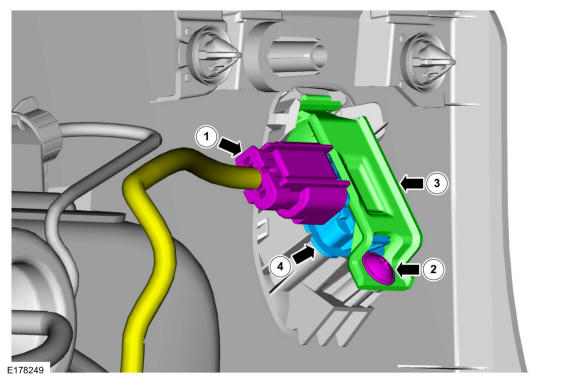

2. 1. Disconnect the rear view camera electrical connector.
   2. Remove the screw.
   3. Remove the rear view camera bracket.
   4. Remove the rear view camera.

   Courtesy of FORD MOTOR COMPANY

   Roof mounted rear view camera

3. Remove the high mounted stoplamp assembly. Refer to: High Mounted Stoplamp .

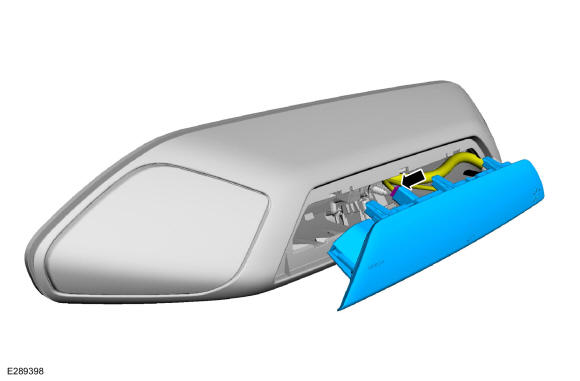

4. Release the spring clips and position the high mounted stoplamp out of the stoplamp housing.

   Courtesy of FORD MOTOR COMPANY

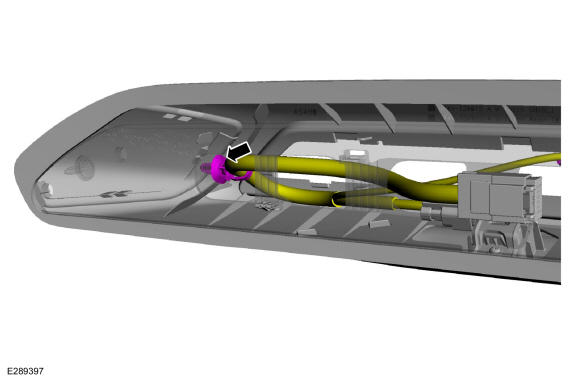

5. Separate the wiring harness retainer.

   Courtesy of FORD MOTOR COMPANY

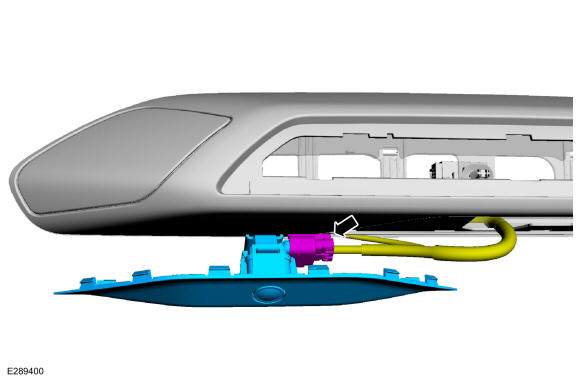

6. Disconnect the electrical connector and remove the high mounted stoplamp.

   Courtesy of FORD MOTOR COMPANY

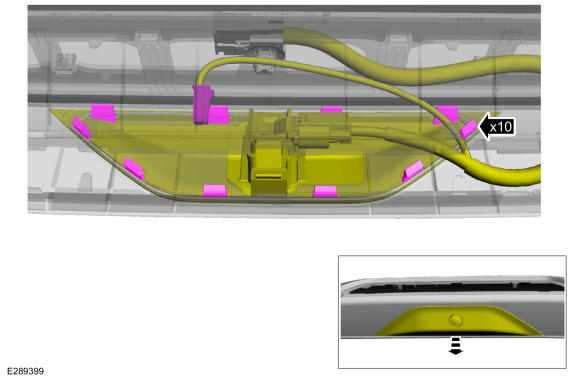

7. Release the tabs and position the rear view camera bezel away from the high mounted stoplamp housing.

   Courtesy of FORD MOTOR COMPANY

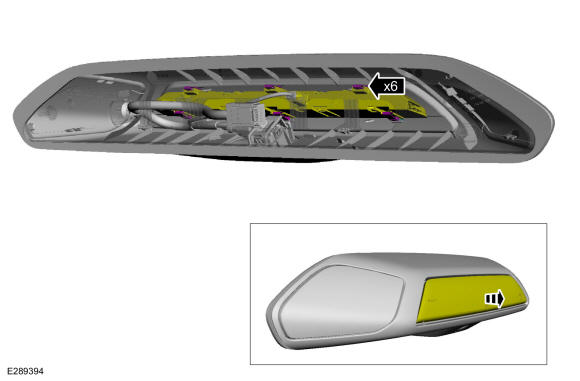

8. Disconnect the electrical connector and remove the rear view camera and bezel assembly.

   Courtesy of FORD MOTOR COMPANY

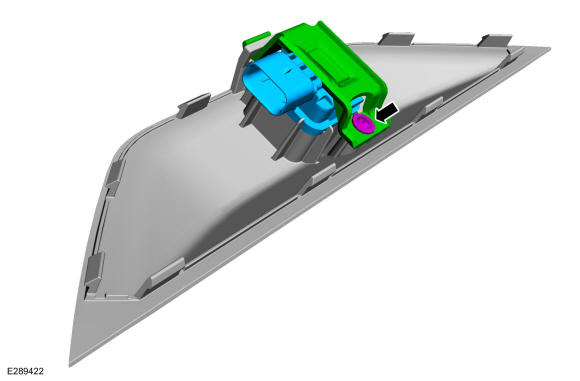

9. Remove the screw, the retaining bracket and the rear view camera.
