Front Parking Aid Camera: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front bumper cover. Refer to: Front Bumper Cover .

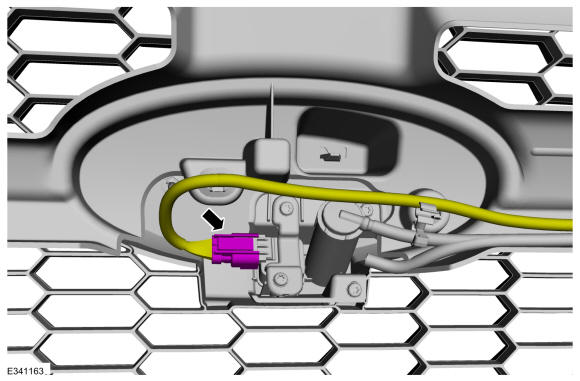

  2. Disconnect the electrical connector.
    GFD787077Courtesy of FORD MOTOR COMPANY

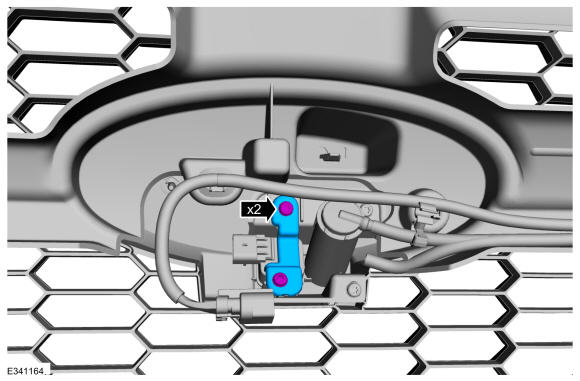

  3. Remove the screws and the front parking aid bracket.
    GFD787078Courtesy of FORD MOTOR COMPANY

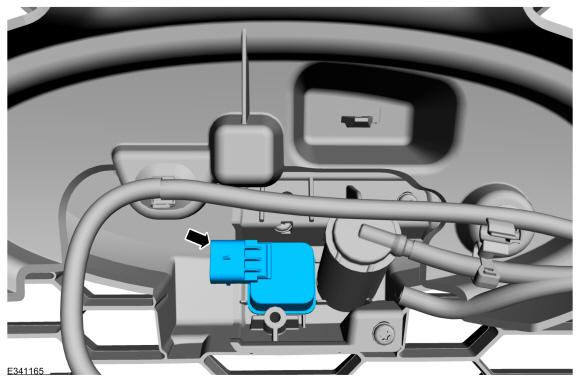

  4. Remove the front parking aid camera.
GFD787079Courtesy of FORD MOTOR COMPANY
