Brake Vacuum Pump: Installation

NOTE: Make sure that the components are installed to the position noted before removal.

To install, reverse the removal procedure.

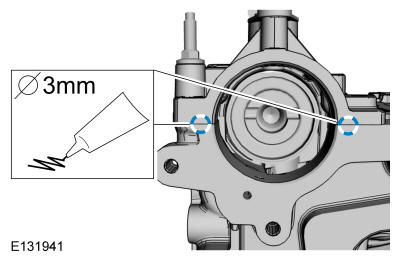

Apply an 3 mm bead of the specified sealant in the location shown in illustration.
Material: Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)
