Selector Lever Cable Bushing - 6-Speed Automatic Transmission - 6F35: Removal

Apply the parking brake, chock wheels to make sure vehicle does not roll.

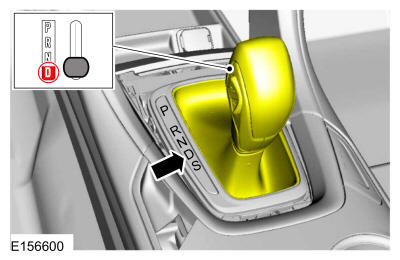

Position the selector lever in D.

Courtesy of FORD MOTOR COMPANY
Remove the air cleaner assembly. Refer to: Air Cleaner .

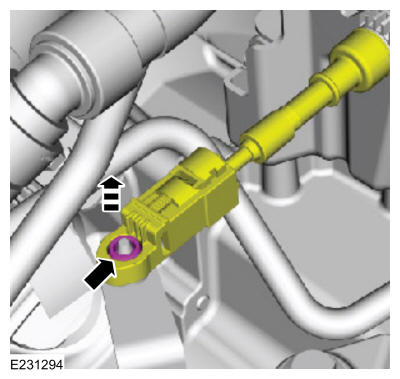

Disconnect the selector lever cable from the transmission manual lever.

Courtesy of FORD MOTOR COMPANY

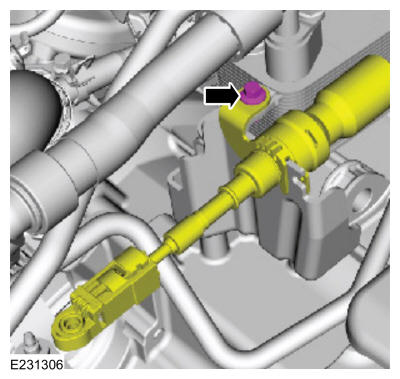

Remove the selector lever cable retaining clip bolt.

Courtesy of FORD MOTOR COMPANY

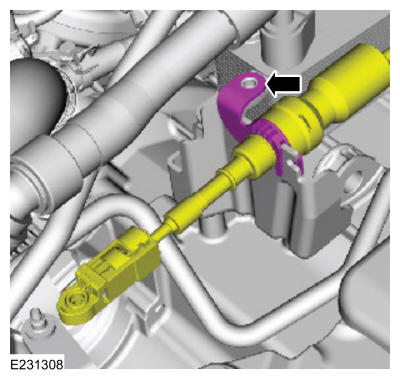

Release the selector lever clip and detach the selector lever cable from the selector lever cable bracket.

Courtesy of FORD MOTOR COMPANY
NOTE: 2013 model year vehicles only. The selector lever cable bushing is taller than the replacement bushing.

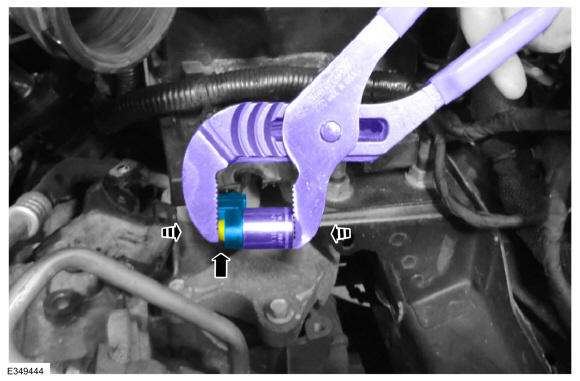

Using a 15mm shallow socket on the bottom of the selector lever cable end, press the bushing out with straight jaw adjustable pliers.

Courtesy of FORD MOTOR COMPANY
NOTE: 2014-2020 model year vehicles only.

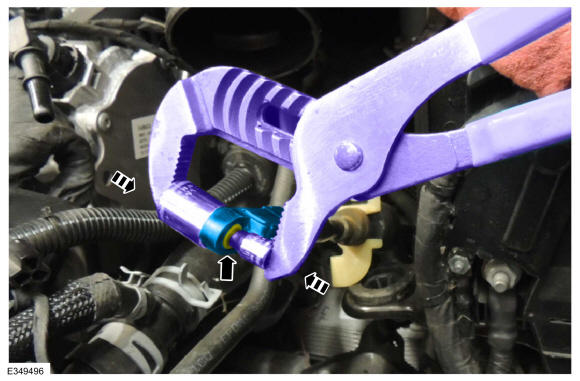

Using a 5mm shallow socket on top of the bushing and a 15mm shallow socket on the bottom of the selector lever cable end, press the bushing out with straight jaw adjustable pliers.

Courtesy of FORD MOTOR COMPANY

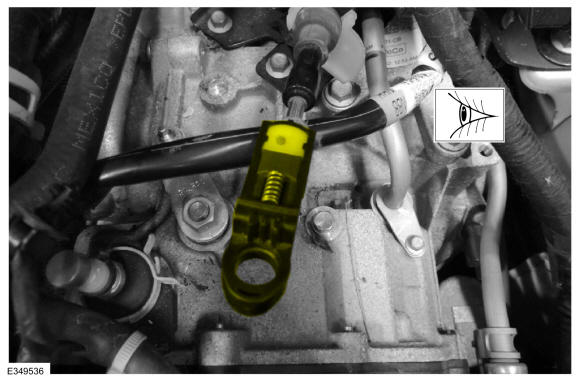

Visually check the selector lever cable end for any signs of damage and replace if necessary.

Courtesy of FORD MOTOR COMPANY
