Selector Lever Cable Bushing - 6-Speed Automatic Transmission - 6F35: Installation

NOTE: Do not use any grease to install the selector lever cable bushing. The selector lever cable bushing must be installed dry.

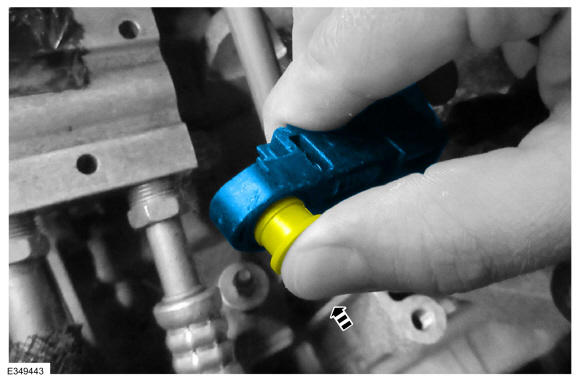

Using only your hands, install the new selector lever cable bushing.

Courtesy of FORD MOTOR COMPANY
Attach the selector lever cable to the selector lever cable bracket.

Courtesy of FORD MOTOR COMPANY

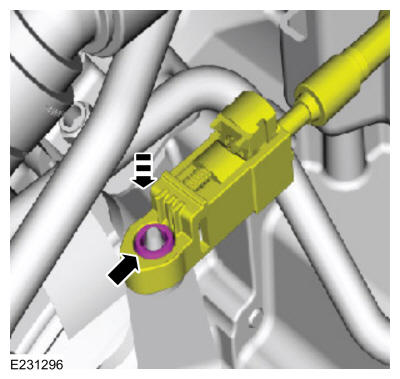

Install the selector lever cable retaining clip bolt.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

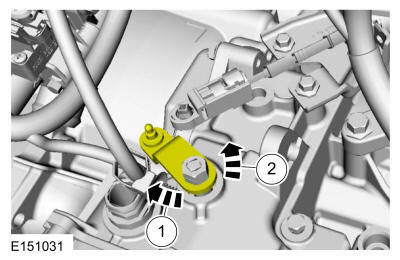

Position the manual control lever in D.
1. Rotate the manual control lever clockwise until it stops.
2. Rotate the manual control lever counterclockwise 1 detent.
Courtesy of FORD MOTOR COMPANY

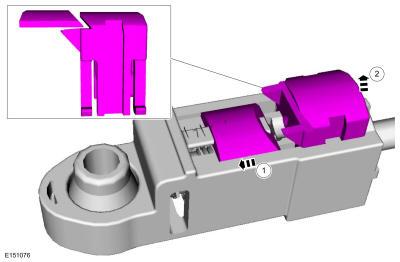

Unlock the adjuster.
1. Move the slide to the left.
2. While holding the slide, position the adjuster lock upward.
Courtesy of FORD MOTOR COMPANY
Connect the selector lever cable to the transmission manual lever.

Courtesy of FORD MOTOR COMPANY

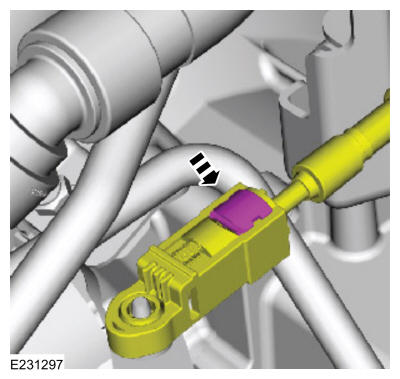

Snap the adjuster lock into place.

Courtesy of FORD MOTOR COMPANY

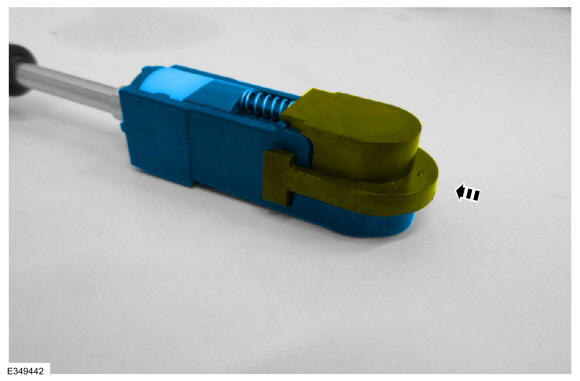

Install the new cap onto the selector lever cable adjuster. Clip one side into the adjuster body and then slide the other onto the housing until it snaps into place. The protective cap should cover the bushing and the terminal end of the adjuster.

Courtesy of FORD MOTOR COMPANY
Install the air cleaner assembly. Refer to: Air Cleaner .
Verify the vehicle only starts in P and N and the reverse lamps illuminate in R.
