Selector Lever Cable Adjustment - 8-Speed Automatic Transmission - 8F35/8F40

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Adjustment

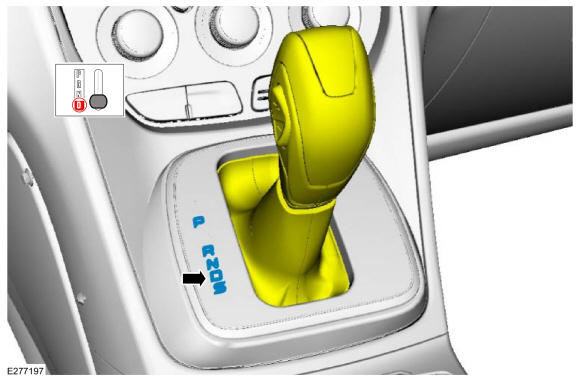

1. Position the selector lever in D.

   Courtesy of FORD MOTOR COMPANY

2. Remove the air cleaner. Refer to: Air Cleaner - 2.0L Duratec-HE (110kW/150PS) - MI4.

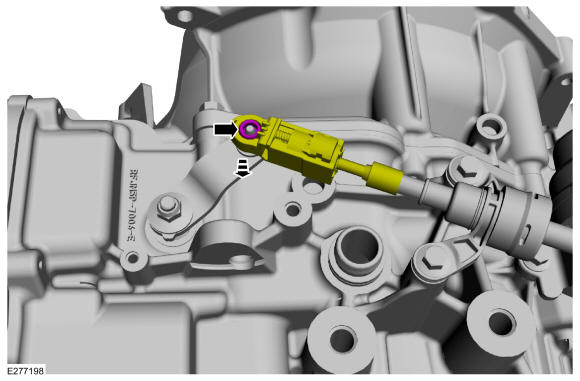

3. Disconnect the selector lever cable from the manual control lever.

   Courtesy of FORD MOTOR COMPANY

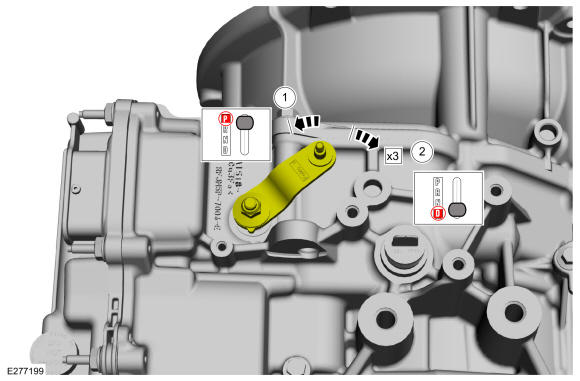

4. Position the manual lever in D.
   1. Rotate the manual control lever counterclockwise until it stops.
   2. Rotate the manual control lever clockwise 3 detents to D.

   Courtesy of FORD MOTOR COMPANY

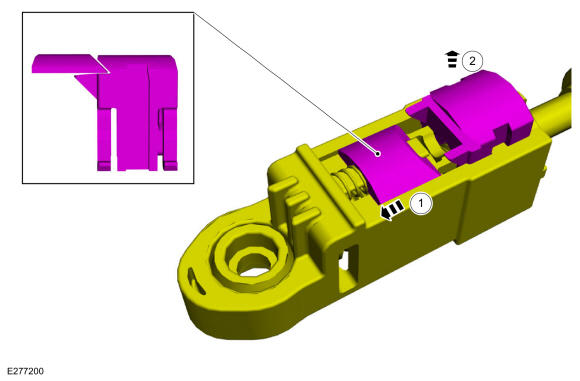

5. Release the selector lever cable adjuster lock.
   1. Slide the adjuster lock tab toward the end on the adjuster.
   2. While holding the adjuster lock tab, slide the lock out to unlock the selector lever cable adjuster.

   Courtesy of FORD MOTOR COMPANY

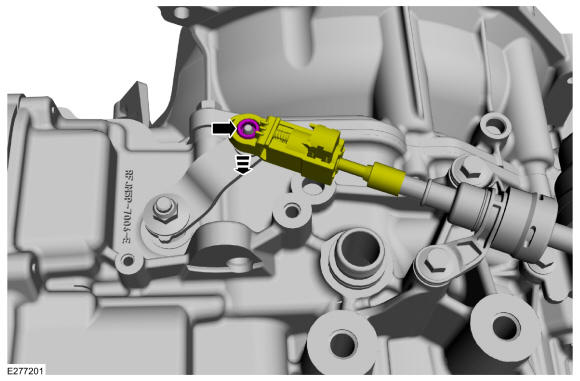

6. Connect the selector lever cable to the manual control lever.

   Courtesy of FORD MOTOR COMPANY

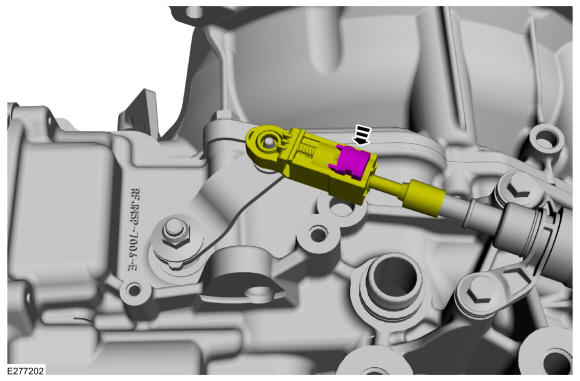

7. Lock the selector lever cable adjuster.

   Courtesy of FORD MOTOR COMPANY

8. Install the air cleaner. Refer to: Air Cleaner - 2.0L Duratec-HE (110kW/150PS) - MI4.
9. Verify the engine starts only in P and N and the reverse lamps illuminate only in R.
