Turbine Shaft Speed (TSS) Sensor: Installation

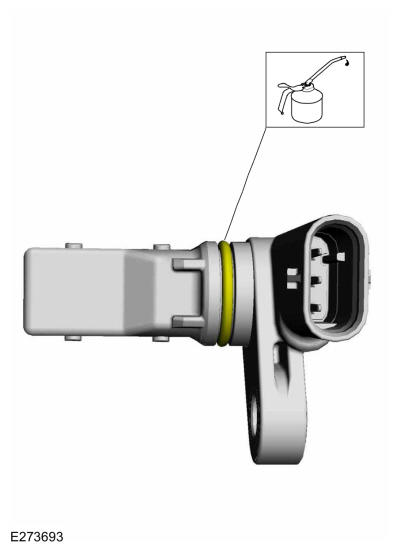

Lubricate the TSS sensor O-ring seal with clean transmission fluid.
Material

: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

Courtesy of FORD MOTOR COMPANY
Install the TSS sensor and install the bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

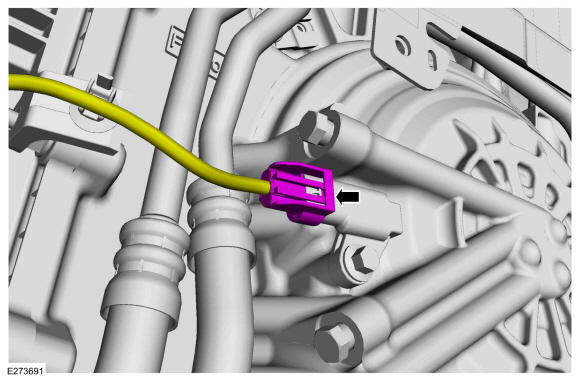

Connect the TSS sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Position the LH fender splash shield and install the retainers.

Courtesy of FORD MOTOR COMPANY

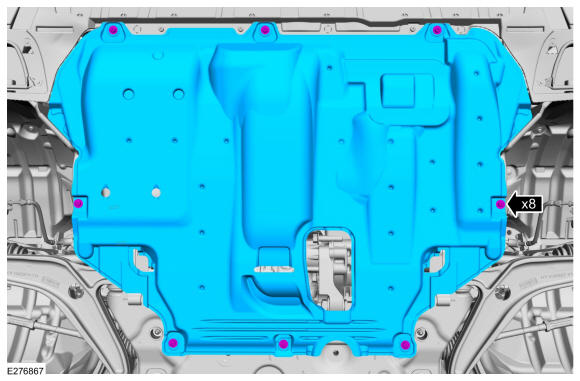

Install the underbody shield and the retainers.

Courtesy of FORD MOTOR COMPANY
Install the left front wheel and tire. Refer to: Wheel and Tire
