Transmission Range (TR) Sensor: Removal
- Remove the main control valve body. Refer to: Main Control Valve Body .

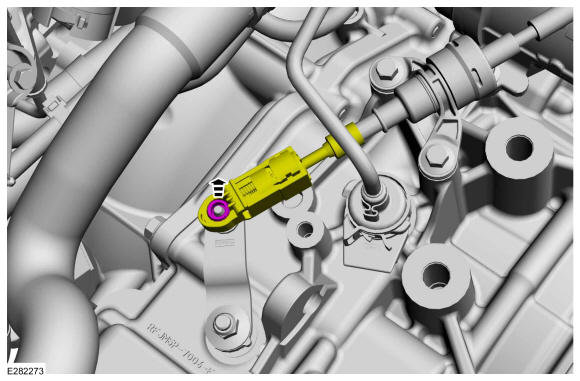

- Disconnect the selector lever cable.

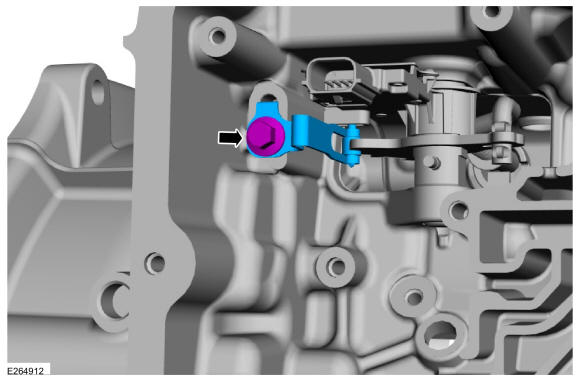

- Remove the bolt and the TR sensor detent spring.
-
NOTE: If the roll pin remover does not pull the roll pin far enough to clear the manual shaft, the roll pin can be pulled from the TR sensor with a pair of locking pliers.

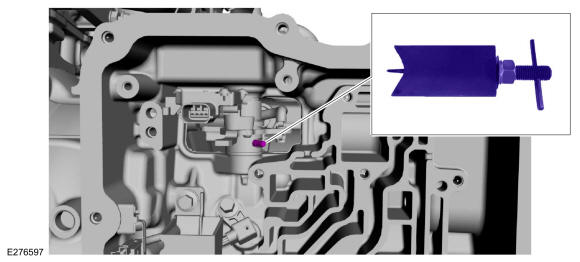

Using the roll pin remover, remove and discard the TR sensor roll pin. Use the General Equipment: Roll Pin Remover Use the General Equipment: Locking Pliers
- Remove the TR sensor.

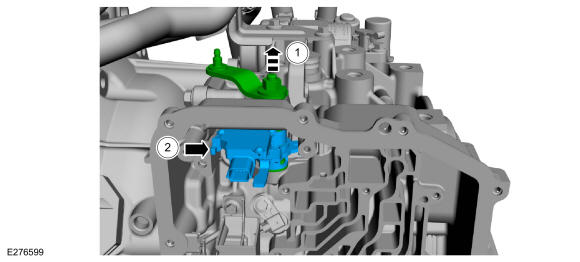

- Remove the manual control shaft and lever.
- Remove the TR sensor and the park pawl actuator rod as an assembly.
