Transmission Range (TR) Sensor: Installation

Install the TR sensor.
1. Install the TR sensor and park pawl actuator rod as an assembly.
2. Install the manual control shaft and lever.
Courtesy of FORD MOTOR COMPANY

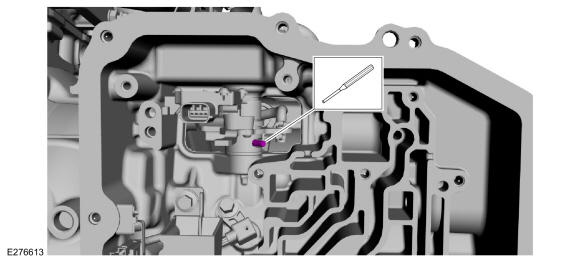

Install the TR sensor roll pin.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the component is correctly installed.

Install the TR sensor detent spring and the bolt.

Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

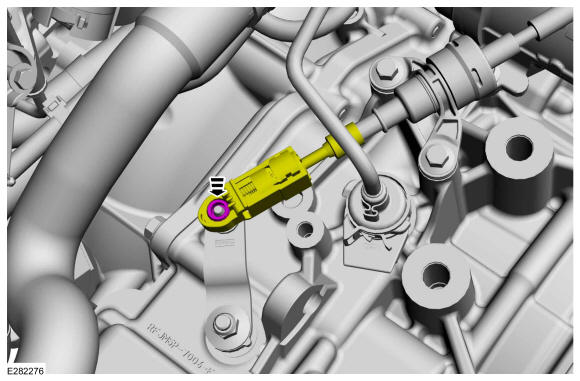

Connect the selector lever cable end to the manual control lever.

Courtesy of FORD MOTOR COMPANY
Install the main control valve body. Refer to: Main Control Valve Body .
