Transmission Control Module (TCM): Removal
- Remove the Headlamp Assembly. Refer to: HEADLAMP ASSEMBLY
-
NOTE: TCM Programming is NOT necessary if the TCM is being re-used.
Download the module information to the diagnostic tool using the Programmable Modules Installation routine.
-
NOTE: Make sure that the terminals or pins/sockets of the transmission control module (TCM) and the TCM electrical connector are not bent or damaged.

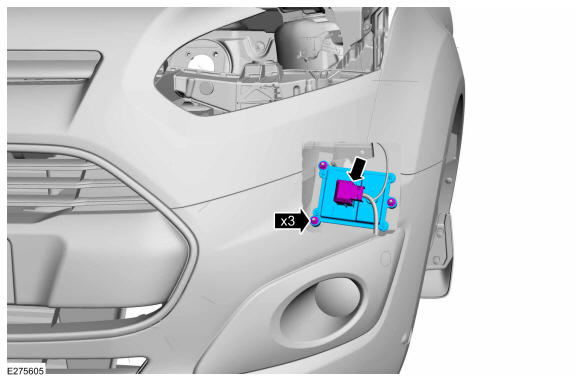

Disconnect the wiring connector. Remove the TCM bolts and remove the TCM.
