Torque Converter Seal: Installation

  1. Place a new torque converter hub seal on the special tool. Use Special Service Tool: 307-760 Installer, Converter Seal, 205-199 (T83T-3132-A1) Installer, Spindle/Axle Shaft.
    GFD572188Courtesy of FORD MOTOR COMPANY

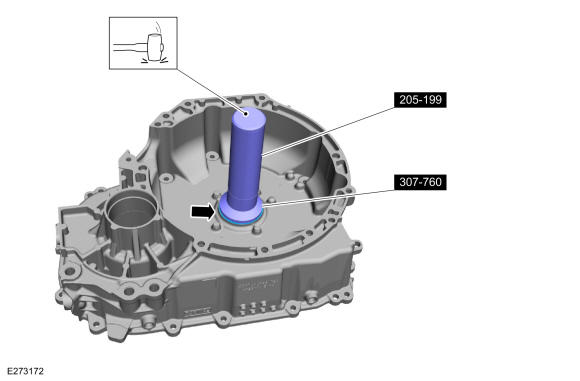

  2. Using the special tools, install the torque converter hub seal. Use Special Service Tool: 307-760 Installer, Converter Seal, 205-199 (T83T-3132-A1) Installer, Spindle/Axle Shaft.
    GFD572091Courtesy of FORD MOTOR COMPANY
  3. NOTE: The torque converter is heavy. Be careful not to drop it or damage will result.

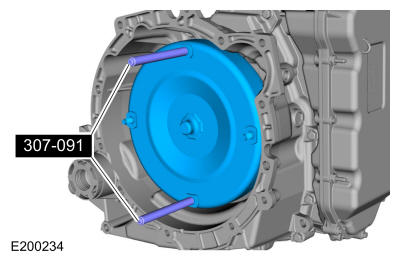

    Using the special tools, install the torque converter from the transmission. Use Special Service Tool: 307-091 Handle, Torque Converter.

    GFD572185Courtesy of FORD MOTOR COMPANY

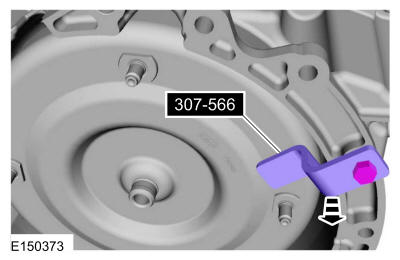

  4. Install the special tool. Use Special Service Tool: 307-566 Retainer, Torque Converter.
    GFD572184Courtesy of FORD MOTOR COMPANY

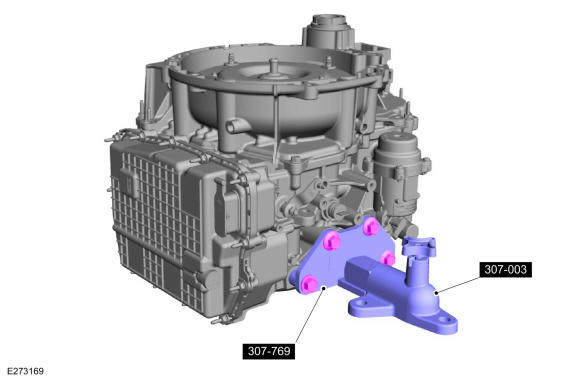

  5. Remove the transmission from the bench-mounted holding fixture and the special tool. Use Special Service Tool: 307-769 Fixture, Bench Mount, 307-003 (T57L-500-B) Holding Fixture, Transmission.
    GFD572183Courtesy of FORD MOTOR COMPANY
  6. Install the transmission. Refer to: Transmission .
