Removal And Installation: Solenoid: Installation

NOTE: Extreme cleanliness must be exercised when handling the components.

NOTE: Make sure that solenoids are installed to the position noted before removal to prevent the damage to the transmission.

Lubricate the TCC and the LPC solenoid O-rings seals with automatic transmission fluid.
Material

: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

Courtesy of FORD MOTOR COMPANY
1. TCC solenoid - 7H136
2. LPC solenoid - 7G383
Courtesy of FORD MOTOR COMPANY
NOTE: If installing a new component, determine the part number.
1. Solenoid nozzle
2. Part information
Courtesy of FORD MOTOR COMPANY

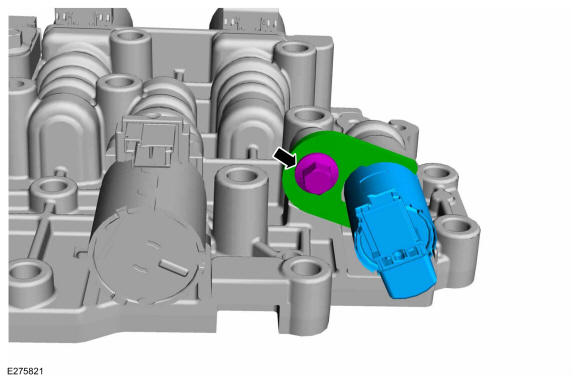

Install the LPC solenoid. Install the bold and the clamp.
Torque: 14 lb.in (1.6 Nm)

Courtesy of FORD MOTOR COMPANY

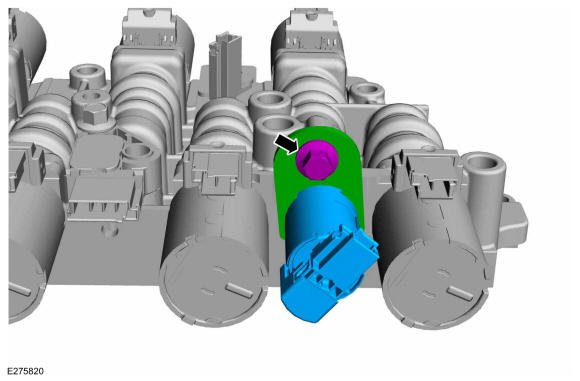

Install the TCC solenoid. Install the bolt and the clamp.
Torque: 14 lb.in (1.6 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: The solenoids are calibrated from the factory and are not all the same. Failure to mark the solenoids to the ports they were originally in can result in mixing the solenoids and can cause damage to the transmission or a harsh shift.

NOTE: Note the position of the components before removal.
1. SSA (CB12345) 7J136
2. SSF (CB28) 7J136
3. SSB (C46R) 7J136
4. SSD (SOWC) 7J136
5. SSE (C5678) 7J136
6. SSC (CB37) 7J136
Courtesy of FORD MOTOR COMPANY
NOTE: If installing a new component, determine the part number.
1. Armature/pin assembly
2. Part information
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that solenoids are installed to the position noted before removal to prevent the damage to the transmission.

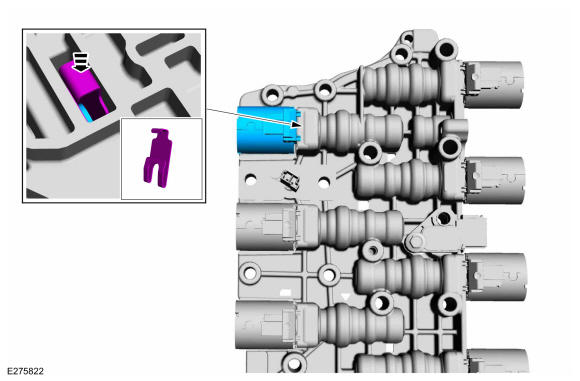

Install the solenoid and the retainer clip.

Courtesy of FORD MOTOR COMPANY
Install the Solenoid Body. Refer to: Solenoid Body .
