Solenoid Body: Removal

  1. Remove the main control valve body. Refer to: Main Control Valve Body .
  2. Remove the bolt and the connectors. Remove the wiring harness assembly.

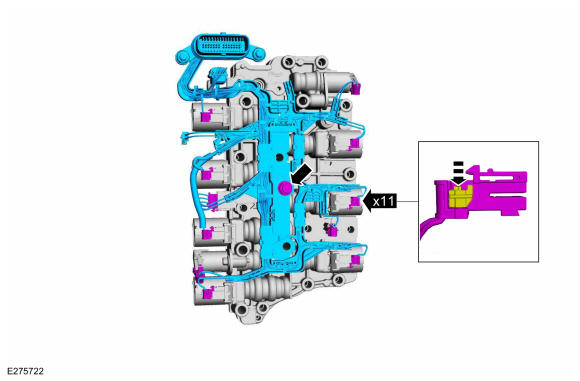

    GFD572174Courtesy of FORD MOTOR COMPANY
  3. Remove the solenoid body-to-valve body bolt and separate the solenoid body from the valve body.
    GFD572175Courtesy of FORD MOTOR COMPANY
  4. Remove and discard the push pin retainer and the separator plate.

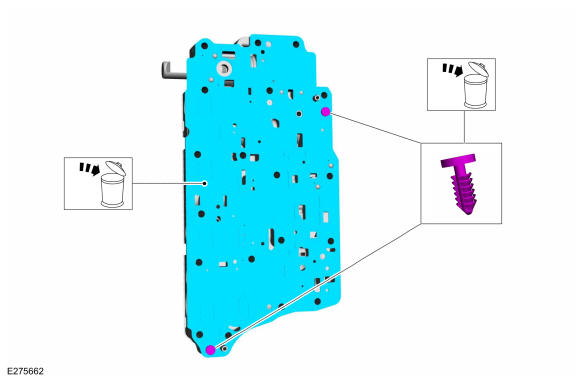

    GFD572176Courtesy of FORD MOTOR COMPANY
  5. Remove the following items.

    1. Solenoid damper
    2. Bypass valve

    GFD572177Courtesy of FORD MOTOR COMPANY
  6. Remove the No 6 check ball.
GFD572178Courtesy of FORD MOTOR COMPANY
