Selector Shaft Seal: Installation

  1. NOTE: Use a new seal.

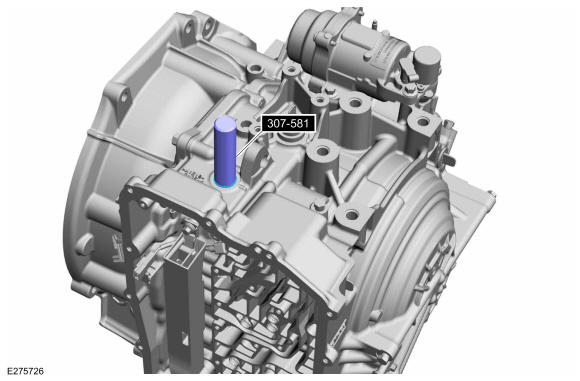

    Using the special tool, install the new selector shaft seal. Use Special Service Tool: 307-581 Manual lever seal installer.

    GFD572162Courtesy of FORD MOTOR COMPANY
  2. Install the TR sensor. Refer to: Transmission Range (TR) Sensor .
