Output Shaft Speed (OSS) Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the main control valve body. Refer to: Main Control Valve Body .

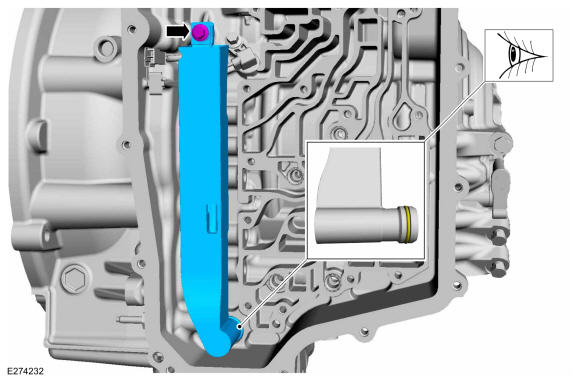

2. Remove the bolt and the fluid transfer pipe.

   Courtesy of FORD MOTOR COMPANY

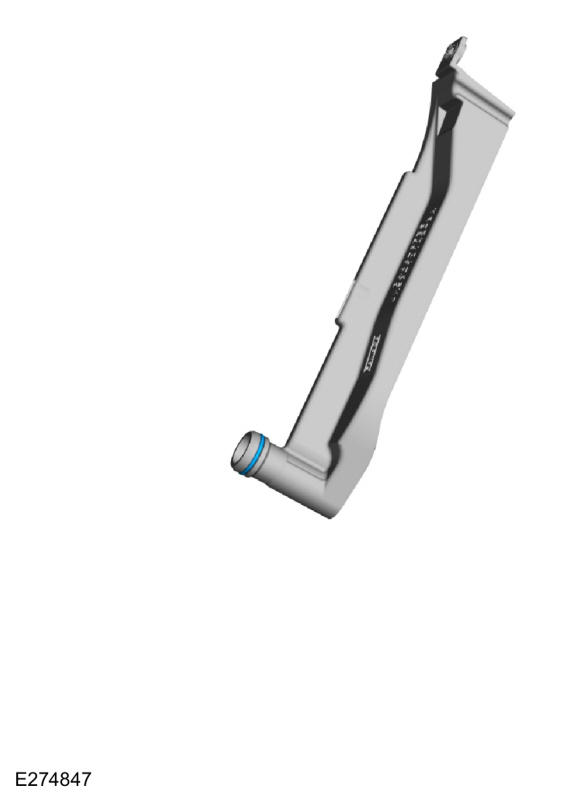

3. Remove and discard the fluid transfer pipe O-ring.

   Courtesy of FORD MOTOR COMPANY

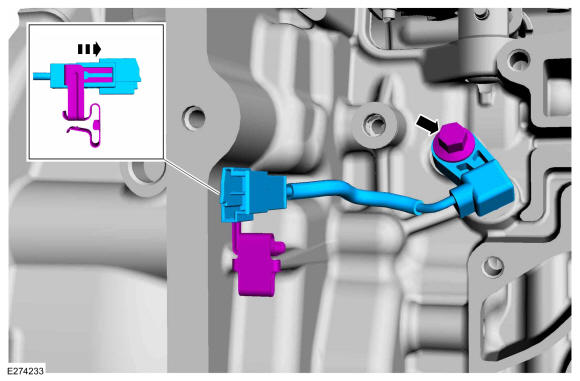

4. Remove the bolt and remove the OSS sensor.

Courtesy of FORD MOTOR COMPANY
