Output Shaft Speed (OSS) Sensor: Installation

Install the bolt and install the OSS sensor.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

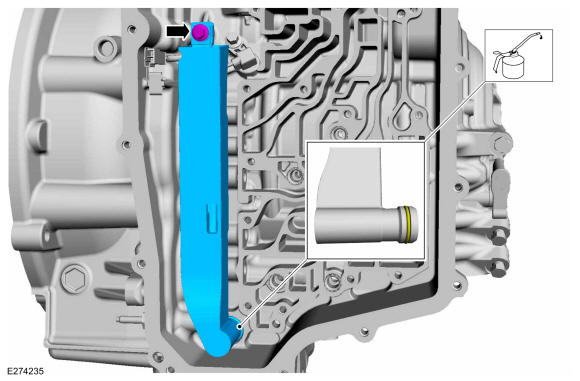

Install the fluid transfer pipe and the bolt.
Material

: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the main control valve body. Refer to: Main Control Valve Body .
