Main Control Valve Body: Removal

Remove the main control cover. Refer to: Main Control Cover .
Disconnect the TR sensor electrical connector and disconnect the OSS sensor electrical connector and remove the bolts.

Courtesy of FORD MOTOR COMPANY

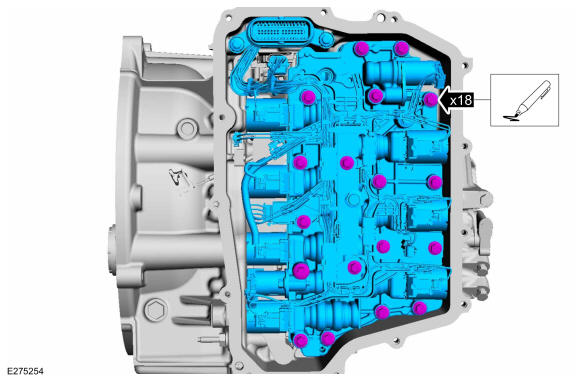

NOTE: Take extra care when handling the components.

NOTE: Note the different lengths of the bolts.

Remove the bolts and the main control valve body with the transmission wiring harness assembly.

Courtesy of FORD MOTOR COMPANY
Remove the bolt, the push pin retainer and the separator plate.

Courtesy of FORD MOTOR COMPANY
