Auto-Start-Stop Accumulator: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the transmission support insulator. Refer to: Transmission Support Insulator .

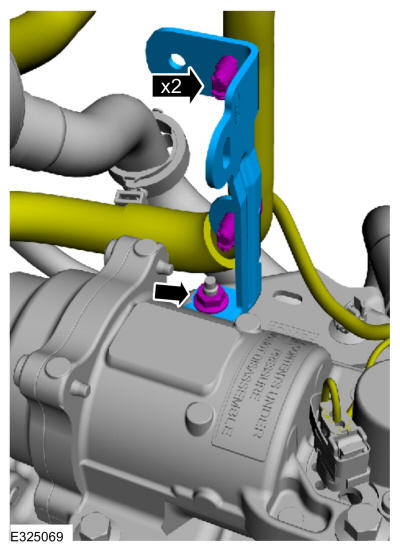

Detach the wiring harness retainers. Remove the nut and the bracket, position aside the wiring harness.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

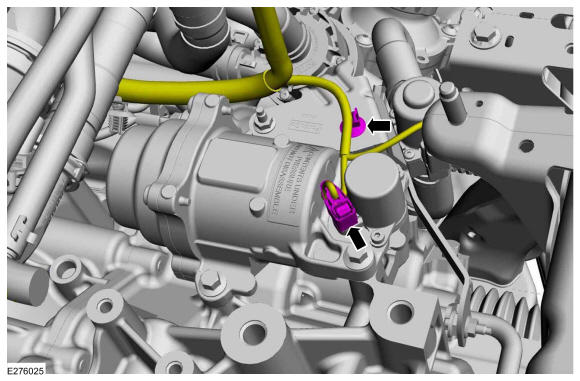

Disconnect the electrical connector, detach the wiring harness retainer and position aside the wiring harness.

Courtesy of FORD MOTOR COMPANY

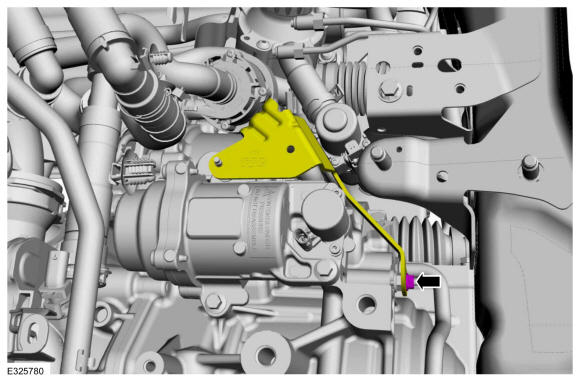

Remove the bolt and position aside the bracket.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

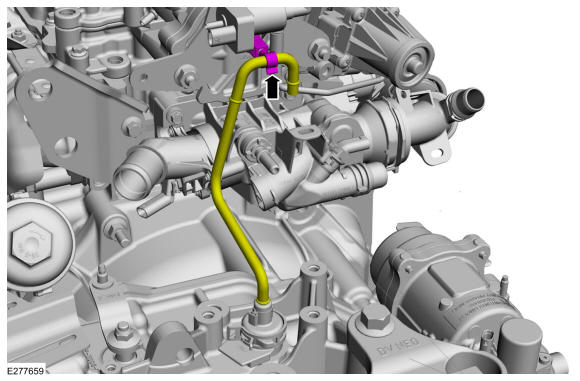

Detach the transmission vent tube.

Courtesy of FORD MOTOR COMPANY

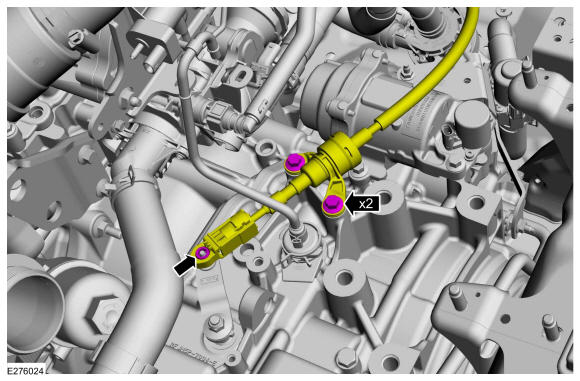

- Disconnect the selector lever cable from the transmission.
- Remove the selector lever cable bracket bolts and position aside the selector lever cable.
  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: To prevent O-ring damage, fully seat the start/stop accumulator before the bolt installation.

Remove the bolts, the studbolt and the Auto-Start-Stop Accumulator.

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new components are installed.

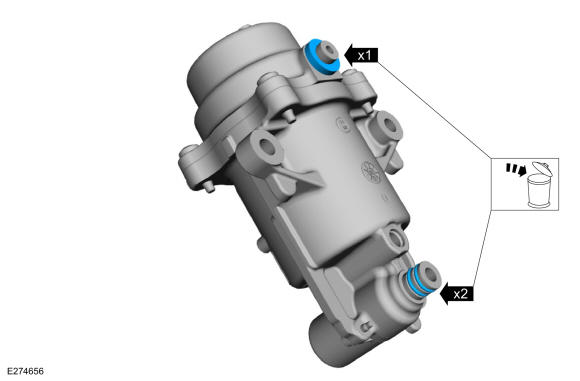

Remove and discard the start/stop accumulator O-rings.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not disassemble, the start/stop accumulator is under pressure.

Using the special tool, discharge the start/stop accumulator into a suitable container. Use Special Service Tool: 307-771 Accumulator Release Pin.
