Auto-Start-Stop Accumulator Solenoid: Installation

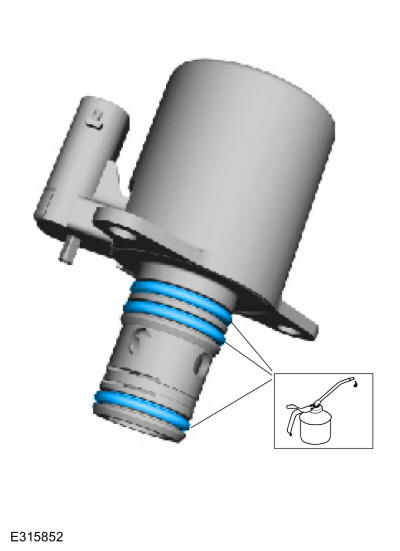

  1. Lubricate the auto-start-stop accumulator solenoid O-rings with petroleum jelly.

    Material

    : Petroleum Jelly

    GFD572126Courtesy of FORD MOTOR COMPANY

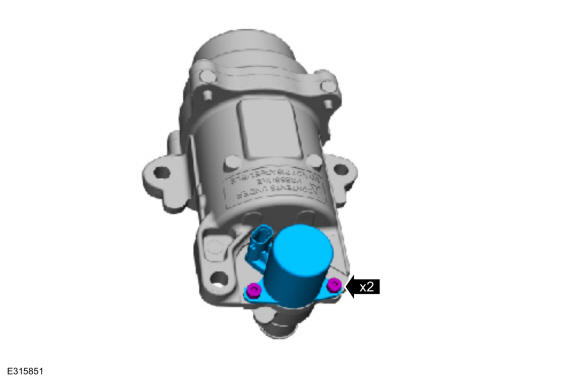

  2. Install the auto-start-stop accumulator solenoid and the bolts.

    Torque: 24 lb.in (2.75 Nm)

    GFD572125Courtesy of FORD MOTOR COMPANY
  3. Install the auto-start-stop accumulator. Refer to: Auto-Start-Stop Accumulator .
