Transmission Strategy Download

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Programming

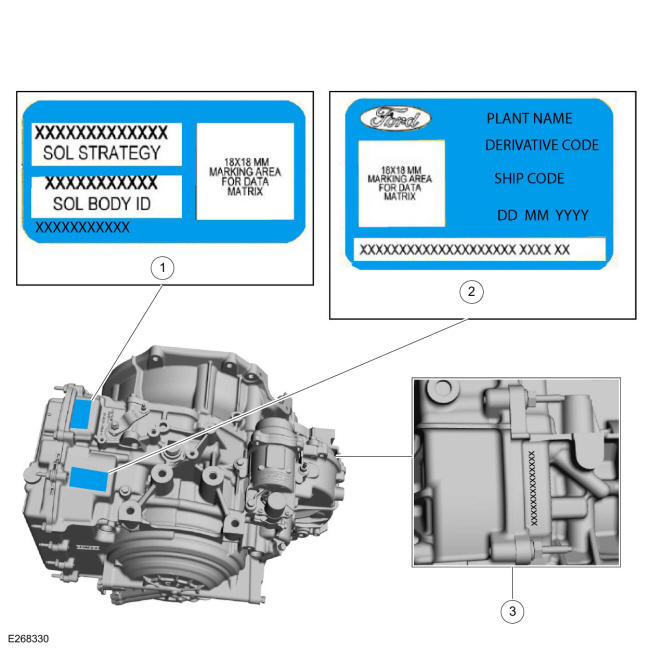

1. This procedure should be performed when a new transmission or main control valve body is installed in the vehicle.
   1. 13 - digit solenoid body strategy
   2. 12 - digit solenoid body identification
   3. VIN
   • If a new main control was installed, record the 13-digit solenoid body strategy from the replacement solenoid body tag provided with the main control service kit. Place the replacement tag over the existing identification tag.
   • If a new transmission was installed, record the 13-digit solenoid body strategy from the solenoid body service information tag on the side of the transmission.

   Courtesy of FORD MOTOR COMPANY

2. Using the scan tool, Select Toolbox and download the PCM - Transmission Strategy Download tool.
3. Run the PCM - Transmission Strategy Download tool. Follow the instructions displayed on the scan tool. There are fields to enter the solenoid body 12-digit identification and 13-digit strategy recorded from the solenoid body
4. Enter the solenoid body 13-digit strategy. The scan tool verifies the numbers entered are valid and displays a message if the information is not valid.
5. Follow the instructions displayed on the scan tool to program the transmission strategy file into the PCM.
6. NOTE: If a drive cycle is not completed, erratic shifts and driveability concerns may occur.

   Road test the vehicle following the Adaptive Learning Drive Cycle. Refer to: Adaptive Learning Drive Cycle .
