Planetary Assembly

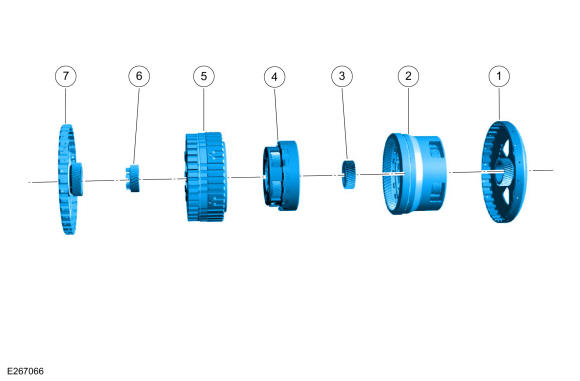

Planetary Gearset Exploded View
| Item | Description |
|---|---|
| 1 | Output sun gear/shell |
| 2 | Output planetary carrier/reaction ring gear |
| 3 | Input sun gear |
| 4 | Input carrier/output ring gear |
| 5 | Reaction/overdrive carrier/input ring gear |
| 6 | Reaction sun gear |
| 7 | Overdrive sun gear/shell |

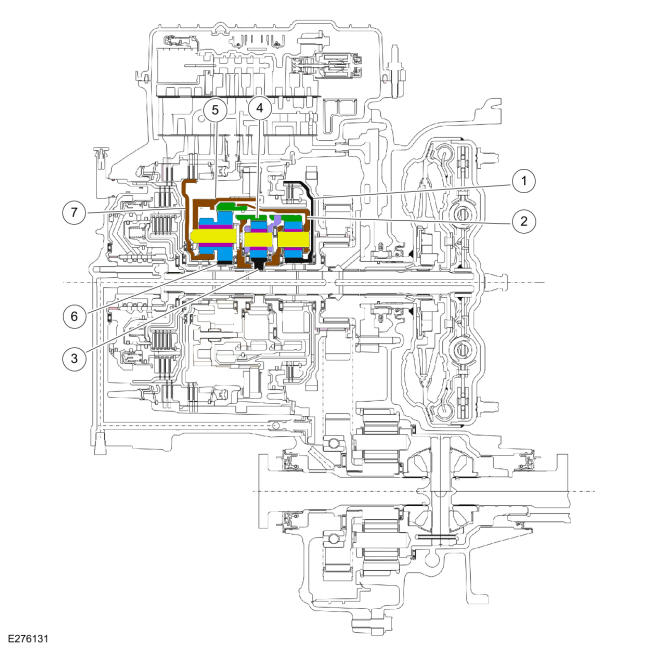

Planetary Gearset Cutaway View
Planetary Gearset
This transmission has 4 planetary gearsets to provide operation in reverse and 8 forward speeds.
The gearsets are comprised of the following components:
- Output planetary sun gear/shell
- Output planetary carrier
- Output planetary ring gear
- Input planetary sun gear
- Input planetary carrier
- Input planetary ring gear
- Reaction/overdrive planetary ring gear
- Reaction/overdrive planetary carrier
- Reaction sun gear
- Overdrive sun gear/shell
Output Planetary Carrier Hub Exploded View
| Item | Description |
|---|---|
| 1 | Drive chain drive sprocket |
| 2 | Output planetary carrier hub/park gear |
| 3 | Output planetary carrier |
Output Planetary Carrier Hub
The output planetary carrier hub/park gear is splined to the output planetary carrier and the drive chain drive sprocket. This allows torque to be transferred from the planetary gearset to the final drive gearset.
