Wheel and Tire: Installation
- Clean the mounting surfaces. Apply anti-seize lubrication. Refer to SPECIFICATIONS .
- Lower the vehicle. Refer to: Jacking and Lifting - Overview .

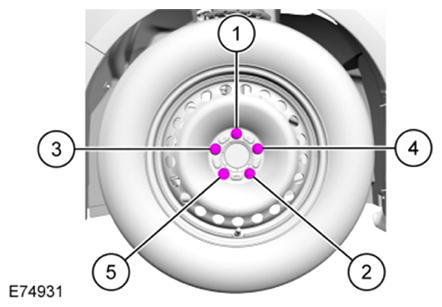

- Tighten the wheel nuts in the sequence shown.
Torque:
M14X1.5: 150 lb.ft (204 Nm)
WARNING:
When a wheel is installed, always remove any corrosion, dirt or foreign material present on the mounting surface of the wheel and the mounting surface of the wheel hub, brake drum or brake disc. Make sure that any fasteners that attach the rotor to the hub are secured so they do not interfere with the mounting surfaces of the wheel. Failure to follow these instructions when installing wheels may result in the wheel nuts loosening and the wheel coming off while the vehicle is in motion, which could result in loss of control, leading to serious injury or death to vehicle occupant(s).
NOTE:
Make sure to apply a thin coat of anti-seize lubrication only to the interface between the wheel pilot bore and the hub pilot. Do not allow the anti-seize to make contact with the wheel-to-brake disc/drum mounting surface, wheel studs, wheel nuts, brake pads or brake disc friction surfaces or damage to components may occur.
NOTE:
Only tighten the nuts finger tight at this stage.
