Wheel and Tire: Disassembly

NOTE: Failure to follow the instructions below may result in damage to the TPMS.

NOTE: The TPMS sensor is mounted to the valve stem. Removal of the valve stem requires dismounting the tire from the wheel and removal of the TPMS sensor.

NOTE: Use only the Digital Tire Pressure Gauge any time tire pressures are measured to be sure that accurate values are obtained.

WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .
Refer to: Wheel and Tire .
NOTE: The valve stem is connected to the TPMS sensor. Do not pull the valve stem from the wheel, or damage to the sensor will occur.

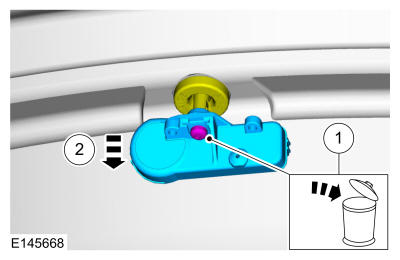

NOTE: If a new TPMS sensor is being installed, remove and discard the valve stem-to-sensor screw and the sensor.

Remove the valve stem core and fully deflate all air from the tire.
NOTE: Do not allow the tire beads to move beyond the wheel mid-plane (middle of the wheel) when separating the beads from the wheels, damage to the TPMS sensor may occur.

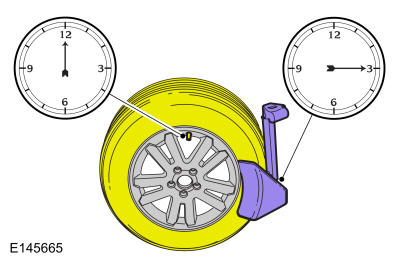

NOTE: Tire and valve stem position is critical to prevent damage to the TPMS sensor when using a paddle-type bead separator.

NOTE: Some machines may have a nylon roller bead separator at the 12 o'clock position instead of the paddle-type bead separator at the 3 o'clock position.
- For a paddle-type tire machine, position the valve stem at the 12 o'clock or 6 o'clock position and the paddle at the 3 o'clock position.
- For a roller-type tire machine, align the valve stem with the roller at any position.
NOTE: Paddle type shown in illustration, roller type similar.

Courtesy of FORD MOTOR COMPANY
NOTE: Index-mark the valve stem and wheel weight positions on the tire.

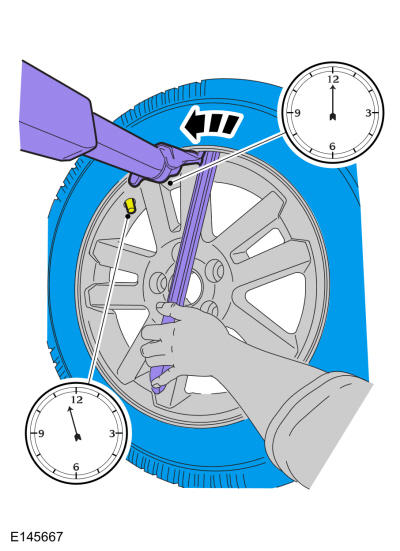

Place the wheel and tire assembly on the turntable of the tire machine with the valve stem at the 11:30 position and the machine arm at the 12 o'clock position and dismount the outer bead from the wheel.

Courtesy of FORD MOTOR COMPANY
Reset the wheel and tire assembly on the turntable of the tire machine with the valve stem at the 11:30 position and the machine arm at the 12 o'clock position and dismount the inner bead from the wheel.
NOTE: A new valve stem must be installed whenever a new tire or wheel is installed.

Discard the specified component. Follow local disposal regulations.

Courtesy of FORD MOTOR COMPANY

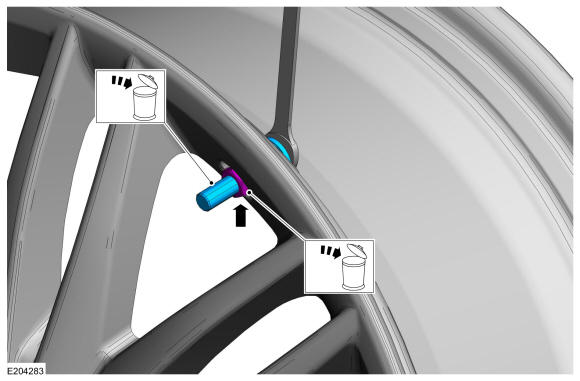

NOTE: This step is only valid for vehicles with TPMS Snap-In Sensors.
NOTE: Use care not to damage the wheel surface when removing the valve stem.

Discard the specified component. Follow local disposal regulations.

Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY

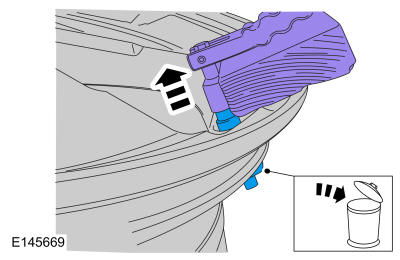

NOTE: This step is only valid for vehicles with TPMS Bolt-On Sensors.
Discard the specified component. Follow local disposal regulations.

Courtesy of FORD MOTOR COMPANY
