Tire Pressure Monitoring System (TPMS) - Component Location

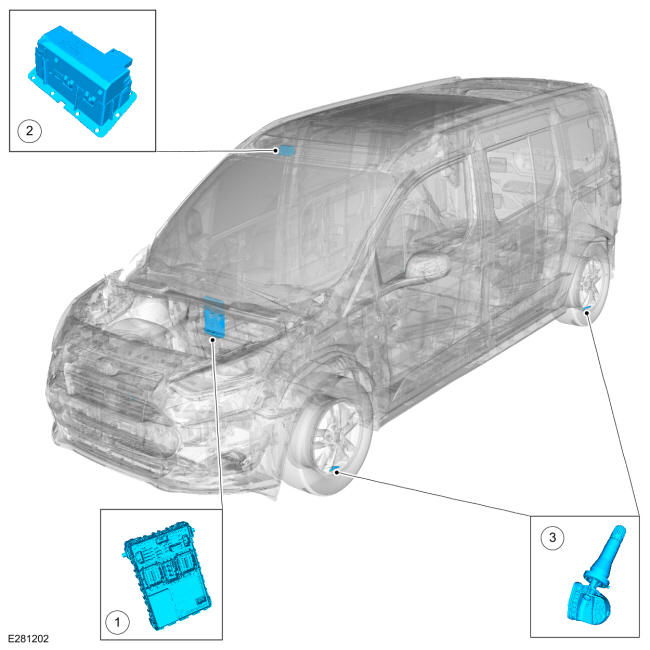

Tire Pressure Monitoring System (TPMS) - Component Location
Courtesy of FORD MOTOR COMPANY
Item
Description
1
BCM
2
RTM
3
TPMS sensor assembly (4 required)
