Second Row Single Seat Seatbelt Buckle: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: RH seat shown in illustration, LH seat similar.

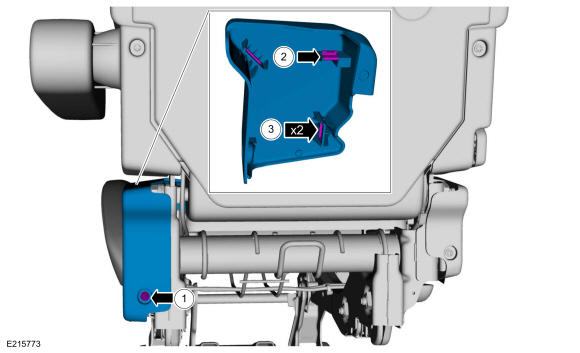

Remove the seat lower back latch cover.
1. Remove the screw.
2. Release the retainer.
3. Release the tabs.
Courtesy of FORD MOTOR COMPANY

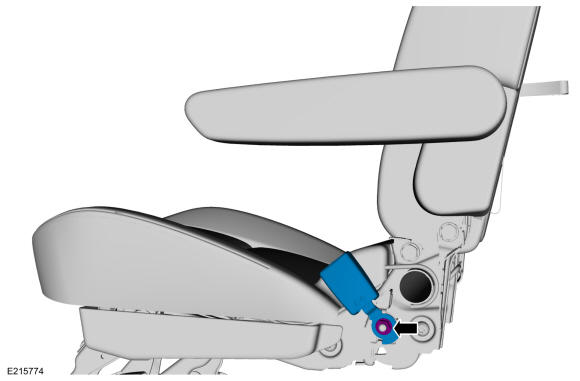

Remove the nut and the safety belt buckle.
Torque

: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
