Second Row Double Seat Center Seatbelt Buckle: Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
- Fold the second row LH side seat.
- Remove the center safety belt anchor nut cover.
-

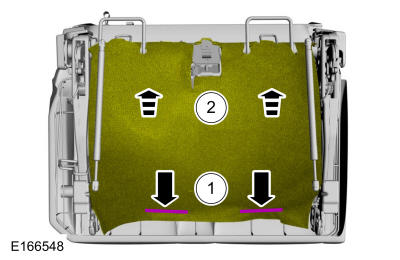

- Detach the J-clips.
- Position the cushion cover flap aside.

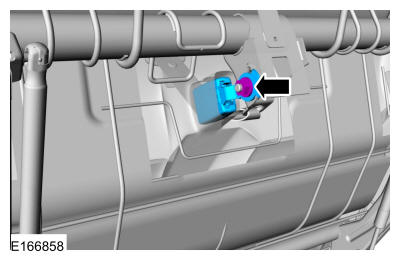

- Remove the bolt and the safety belt buckle.
Torque
: 26 lb.ft (35 Nm)
