Front Seatbelt Buckle: Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
- Remove the front seat. Refer to: FRONT SEAT .
-

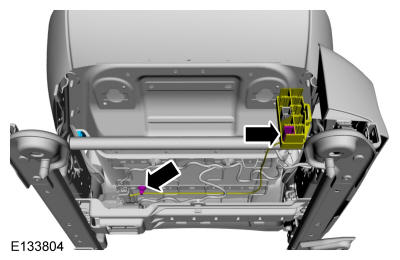

- Release the safety belt buckle wire harness retainer from the seat.
- Release the safety belt buckle electrical connector from the front seat bulkhead connector.

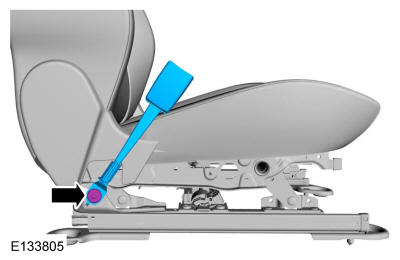

- Remove the bolt and the front safety belt buckle.
Torque
: 35 lb.ft (47 Nm)
