Seatbelt Twisted at the Seatbelt Guide

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Adjustment

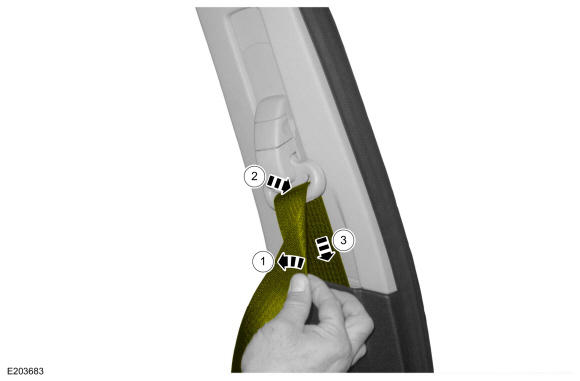

NOTE: Typical D-ring shown in illustration, others similar.
  1. If required, remove the necessary trim panel(s).
    1. Fold the seatbelt as indicated.
    2. Feed the folded portion of the seatbelt into the D-ring.
    3. Pull the seatbelt through the D-ring to remove the twist in the seatbelt.
GFD574406Courtesy of FORD MOTOR COMPANY
