Seat Position Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

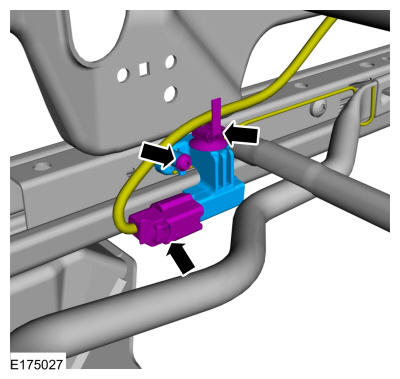

NOTE: RH shown in illustration, LH similar.
    • Remove the screw.

      Torque: 9 lb.in (1 Nm)

    • Release the harness retainer.

    • Disconnect the electrical connector.

    • Remove the seat position sensor.

GFD574585Courtesy of FORD MOTOR COMPANY
