Driver Knee Airbag: Removal
WARNING:
The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to health and safety warnings in General Information . Failure to follow this instruction may result in serious personal injury.
Refer to: Pyrotechnic Device Health and Safety Precautions .
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
- Remove the stoplamp switch. Refer to: Stoplamp Switch .
-
NOTE: Follow the unique instructions or graphic for this step in the installation.

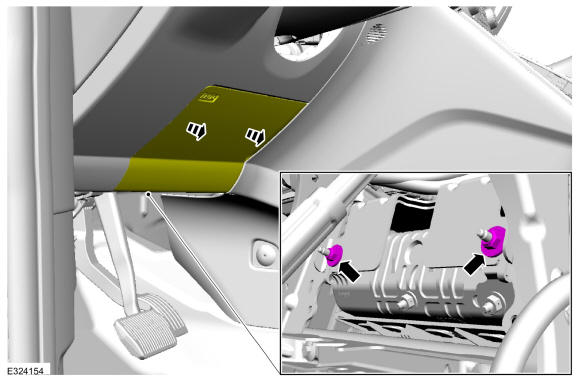

Remove the nuts and position the driver knee airbag out from the instrument panel.
- Disconnect the electrical connector and remove the driver knee airbag.
-
NOTE: Follow the unique instructions or graphic for this step in installation.
Remove the driver knee airbag bracket.
