Battery Energy Control Module B (BECMB): Removal

WARNING: Before beginning any service procedure in this article, refer to health and safety warnings in General Information . Failure to follow this instruction may result in serious personal injury.

Refer to: Pyrotechnic Device Health and Safety Precautions .
NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current BECMB installed. If the current BECMB does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the BECMB following the on-screen instructions.
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
Vehicles With: Touchscreen Display

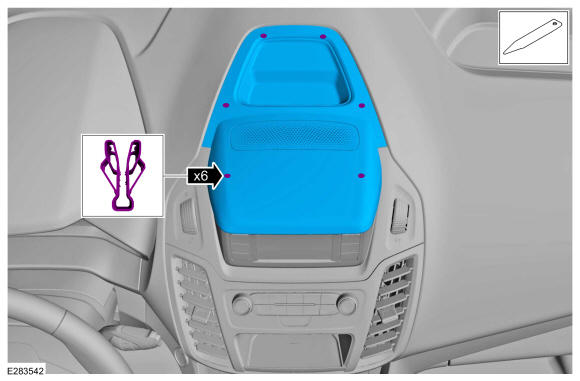

Release the retaining clips and remove the cover. Use Special Service Tool: 501-125 Remover, Grab Handle Cover.

Courtesy of FORD MOTOR COMPANY

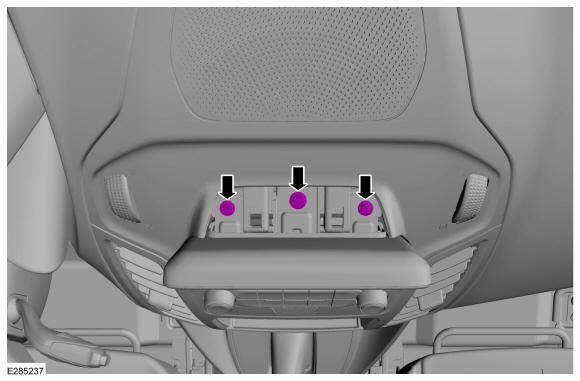

Remove the bolts.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles Without: Touchscreen Display
Release the clips and remove the instrument panel center upper trim panel. Use Special Service Tool: 501-125 Remover, Grab Handle Cover.

Courtesy of FORD MOTOR COMPANY

All vehicles
- NOTE: Do not pull on the wire harness to disconnect/connect the connector or damage to the connector/wire harness will occur.

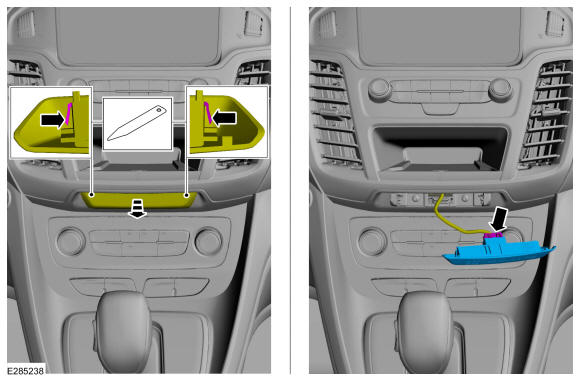

  Release the Passenger Airbag Deactivation Indicator.
- Disconnect the electrical connector and remove the Passenger Airbag Deactivation Indicator.
Courtesy of FORD MOTOR COMPANY

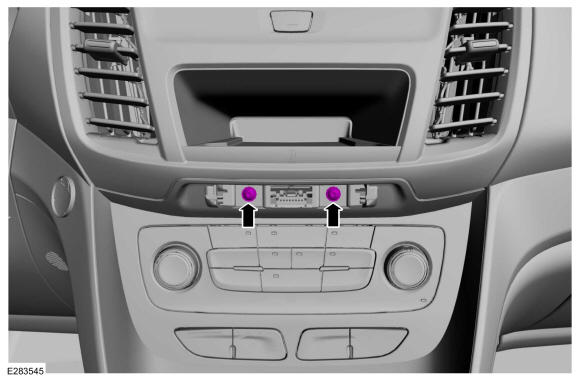

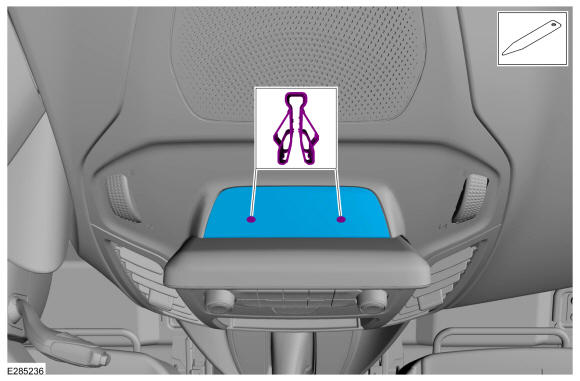

Remove the bolts.

Courtesy of FORD MOTOR COMPANY

Vehicles With: Touchscreen Display

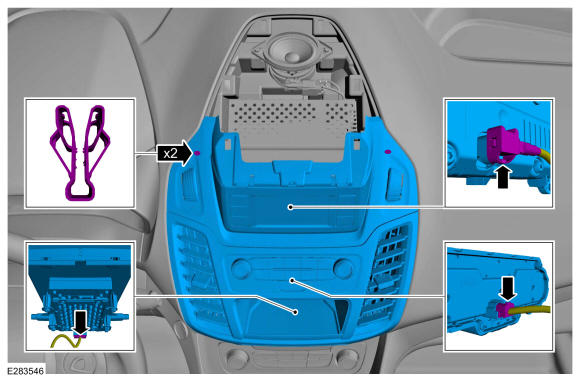

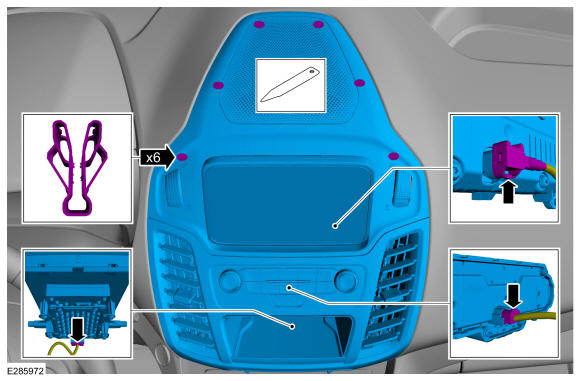

- Release the clips and the audio bezel.
- Disconnect the electrical connectors and remove the audio bezel.
Courtesy of FORD MOTOR COMPANY

Vehicles Without: Touchscreen Display
- Release the clips and the audio bezel.
- Disconnect the electrical connectors and remove the audio bezel.
Courtesy of FORD MOTOR COMPANY

All vehicles

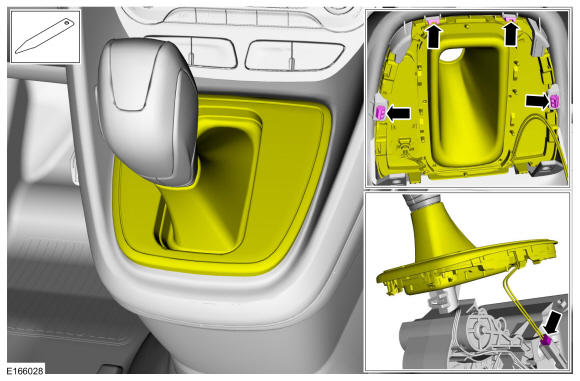

Disengage the 4 retaining tabs and lift the selector lever bezel up and disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

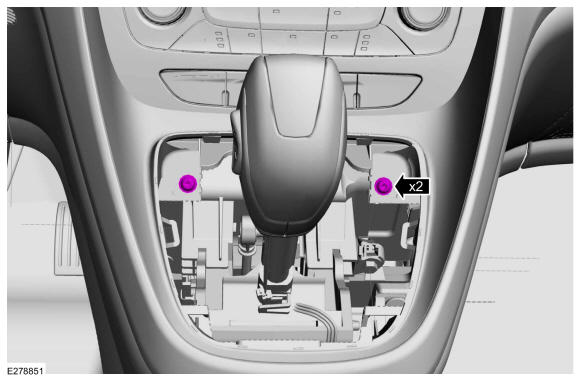

Remove the bolts.

Courtesy of FORD MOTOR COMPANY

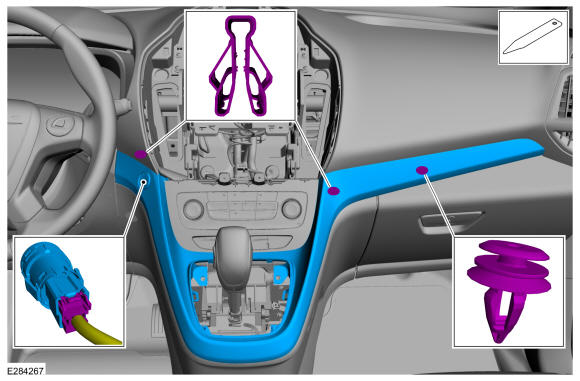

- Release the clips. Use Special Service Tool: 501-125 Remover, Grab Handle Cover.
- Remove the clip and the floor console upper trim panel.
- If equipped, disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

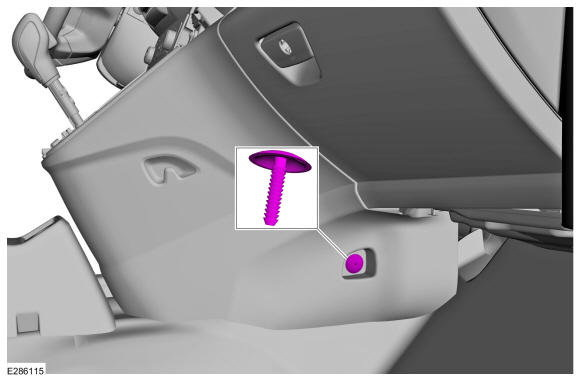

Remove the clip.

Courtesy of FORD MOTOR COMPANY

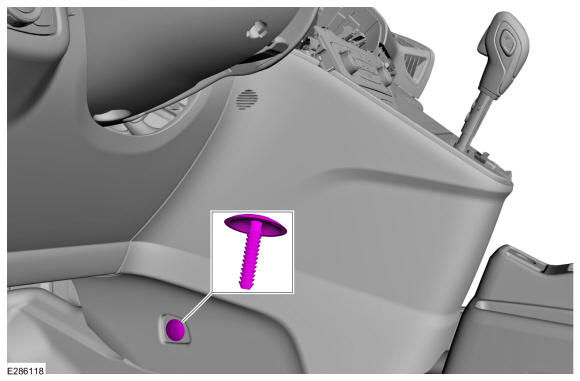

Remove the clip.

Courtesy of FORD MOTOR COMPANY

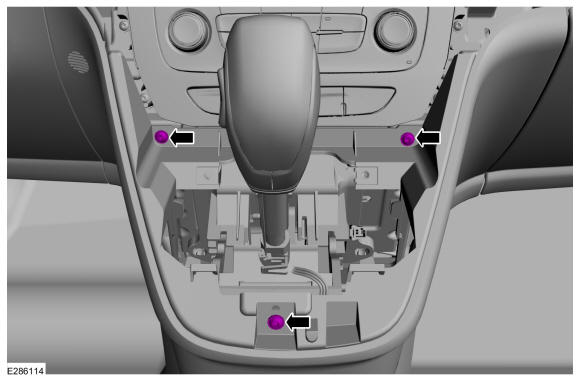

Remove the bolts.

Courtesy of FORD MOTOR COMPANY

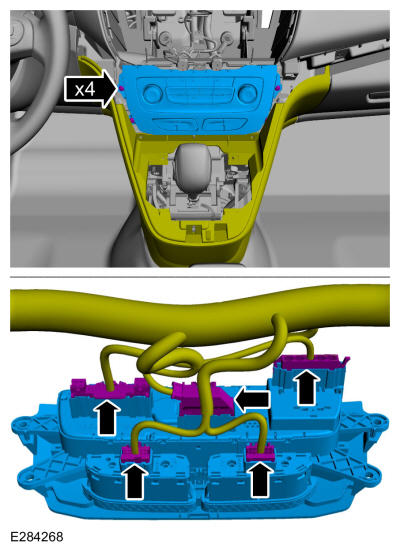

- Remove the bolts and the climate control assembly.
- Disconnect the electrical connectors.
Courtesy of FORD MOTOR COMPANY

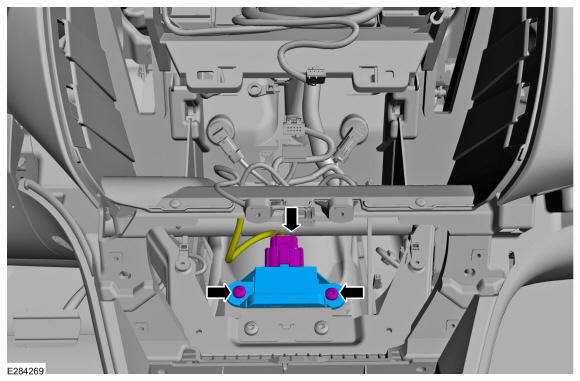

- Remove the bolts and release the BECMB.
- Disconnect the electrical connector and remove the BECMB.

Courtesy of FORD MOTOR COMPANY
