Airbag and Seatbelt Pretensioner Supplemental Restraint System (SRS) - Component Location

Courtesy of FORD MOTOR COMPANY

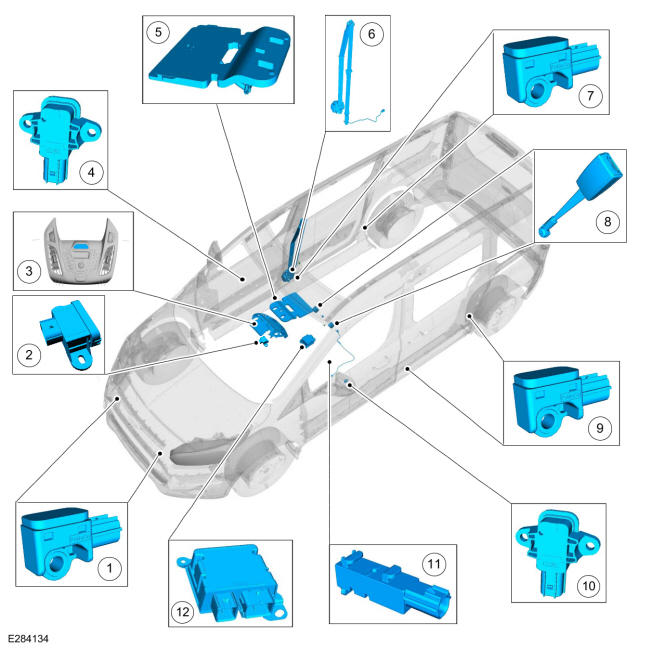

Item	Description
1	Front impact severity sensor
2	BECMB
3	FCIM with passenger airbag deactivation indicator
4	Side impact sensor - front door
5	OCS sensor
6	Seatbelt retractor with Belt Tension Sensor (BTS)
7	B-pillar side impact sensor (driver and passenger side, vehicles without second row seat) and C-pillar side impact sensor (driver and passenger side, vehicles with second row seats respectively second and third row seats)
8	Seatbelt buckle with switch
9	B-pillar side impact sensor (driver and passenger side, vehicles without second row seat) and C-pillar side impact sensor (driver and passenger side, vehicles with second row seats respectively second and third row seats)
10	Side impact sensor - front door
11	Front seat position sensor - driver seat (passenger side if equipped)
12	RCM

Courtesy of FORD MOTOR COMPANY

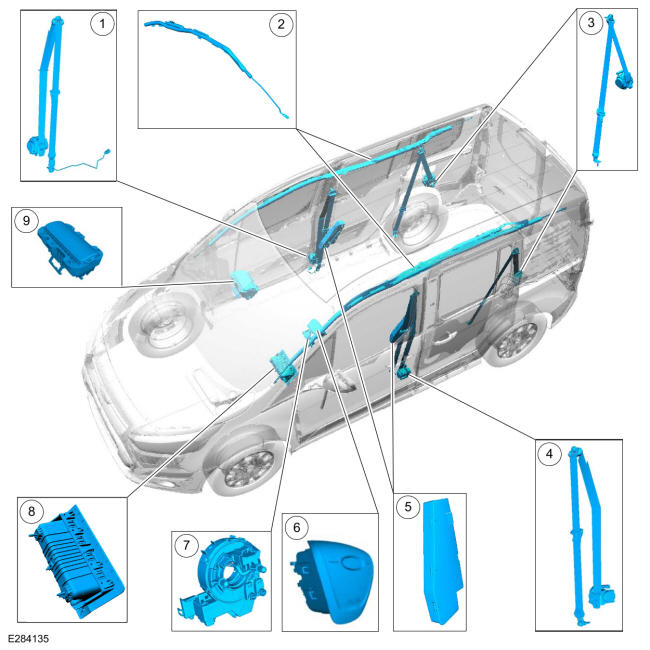

Item	Description
1	Seatbelt retractor and pretensioner with adaptive load limiter (if equipped, passenger side only)
2	Side curtain airbag (if equipped)
3	RH/ LH rear seatbelt retractor and pretensioner
4	Seatbelt retractor and pretensioner
5	Side airbag driver side (passenger side if equipped)
6	Driver airbag
7	Clockspring
8	Driver knee airbag
9	Passenger airbag (if equipped)
