Rear Electric Booster Heater: Removal

All vehicles

1. Remove the LH front seat. Refer to: Front Seat .

   Vehicles with second row double seat

2. Remove the second row double seat. Refer to: Second Row Double Seat .

   Vehicles with second row single seats

3. Remove both second row single seats. Refer to: Second Row Single Seat .

   All vehicles

4. NOTE: Right hand (RH) shown in illustration, left hand (LH) similar.

   Position the LH loadspace trim panel aside.

   Courtesy of FORD MOTOR COMPANY

5. • Position the rear door weatherstrip and the safety belt aside.
   • Remove the retainers and the rear scuff plate trim panel.

   Courtesy of FORD MOTOR COMPANY

6. Position the front door weatherstrip aside, release the clips and remove the front door scuffplate trim panel.

   Courtesy of FORD MOTOR COMPANY

7. • Remove the safety belt anchor bolt and position the safety belt and the rear door weatherstrip aside.

     Torque

     : 30 lb.ft (40 Nm)

   • Release the clips, slide up and remove the lower B-pillar trim panel.

   Courtesy of FORD MOTOR COMPANY

   Vehicles with second row double seat

8. Remove the retainers and position the front floor carpet aside. Use the General Equipment: Retaining Strap

   Courtesy of FORD MOTOR COMPANY

   Vehicles with second row single seats

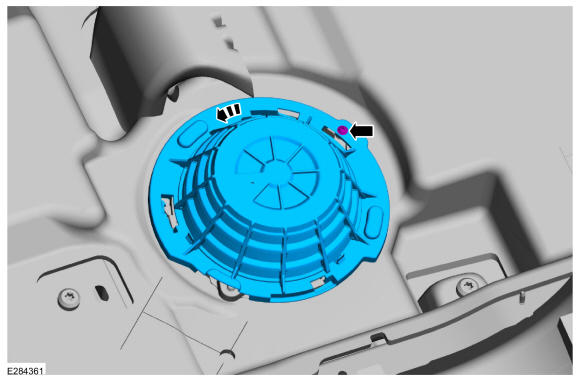

9. Remove the retainer and the filter housing cover.

   Courtesy of FORD MOTOR COMPANY

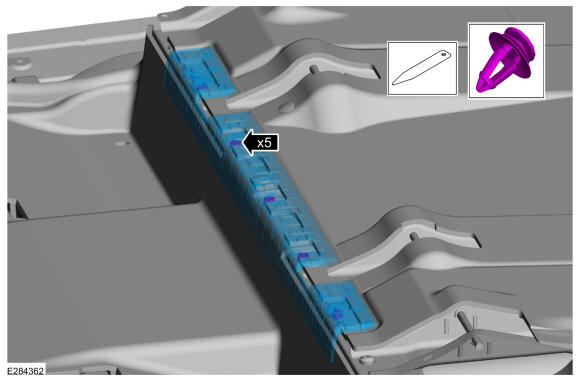

10. Release the clips and remove the scuffplate trim panel. Use the General Equipment: Interior Trim Remover

    Courtesy of FORD MOTOR COMPANY

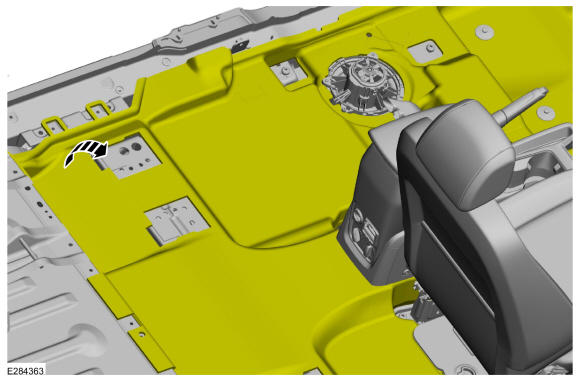

11. Position the front floor carpet aside. Use the General Equipment: Retaining Strap

    Courtesy of FORD MOTOR COMPANY

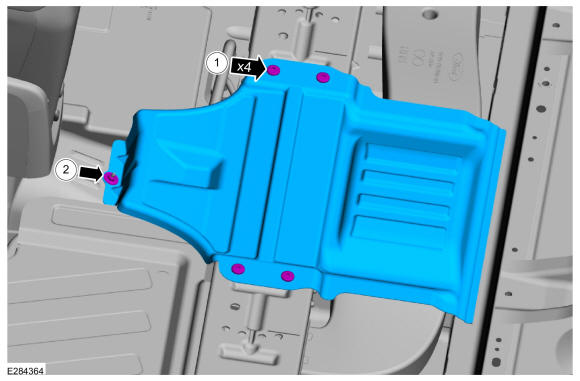

12. 1. Remove the retainers.

       Torque

       : 89 lb.in (10 Nm)

    2. Remove the nut and the shield.

    Courtesy of FORD MOTOR COMPANY

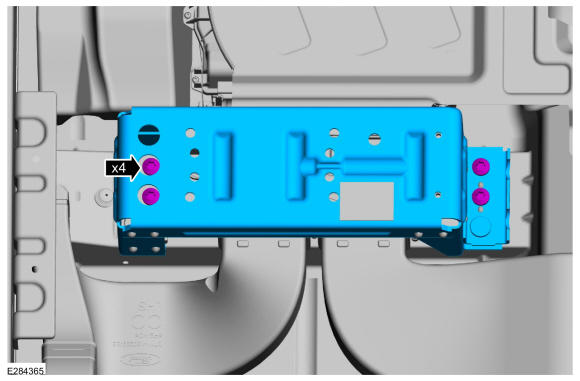

13. Remove the retainers and the LH second row single seat bracket.

    Torque

    : 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

    All vehicles

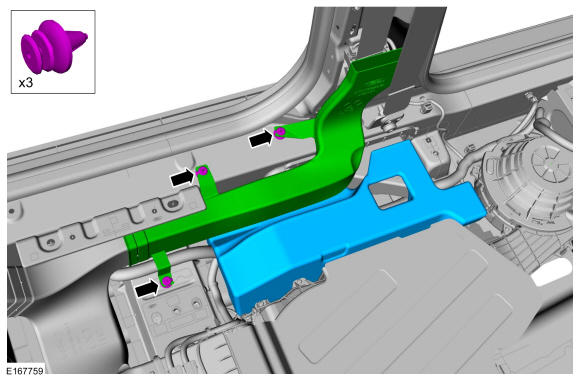

14. • Remove the retainers and the duct.
    • Remove the front floor B-pillar LH spacer.

    Courtesy of FORD MOTOR COMPANY

15. Remove the retainers and the A/C auxiliary assembly cover.

    Torque

    : 27 lb.in (3 Nm)

    Courtesy of FORD MOTOR COMPANY

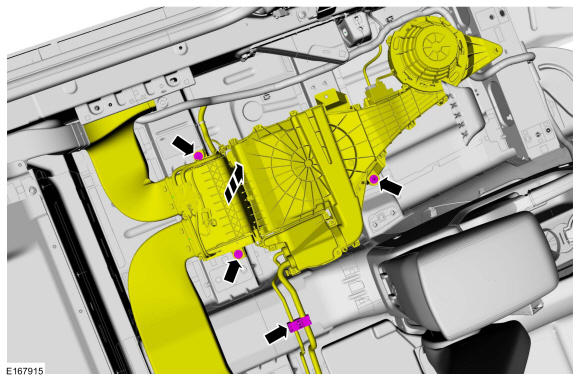

16. • Remove the rear evaporator rear outlet and inlet line retainer.
    • Remove the bolts, stud bolt and position the rear climate control housing assembly aside.

      Torque

      : 71 lb.in (8 Nm)

    Courtesy of FORD MOTOR COMPANY

17. • Disconnect the rear heater electrical connectors.
    • Release the clips, remove the retainers and the rear electric booster heater. Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY
