Rear Climate Control Assembly: Removal

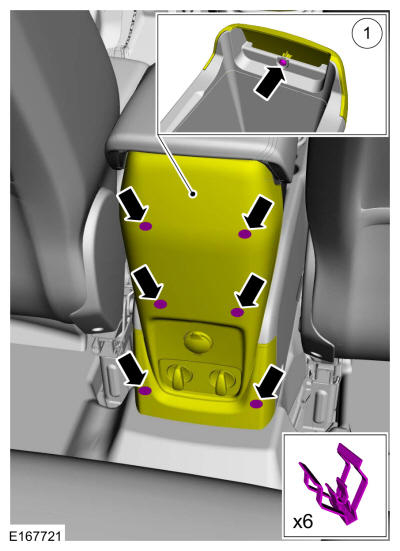

  1. Release the clips and remove the rear floor console finish panel.

    1. Remove the retainer.

    GFD573083Courtesy of FORD MOTOR COMPANY

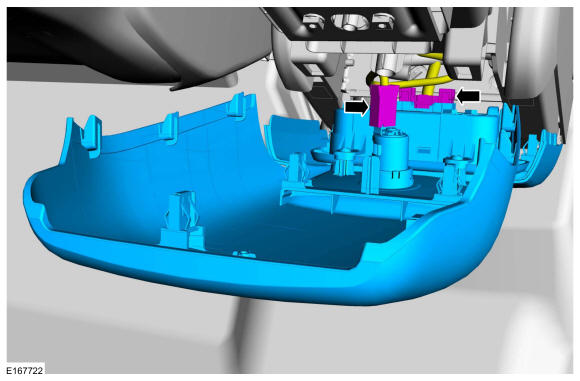

  2. Disconnect the electrical connectors.
    GFD573084Courtesy of FORD MOTOR COMPANY

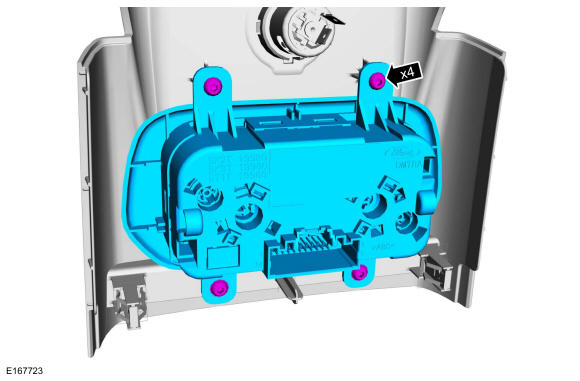

  3. Remove the retainers and the RHVAC control module.
GFD573085Courtesy of FORD MOTOR COMPANY
