Rear Climate Control - Component Location

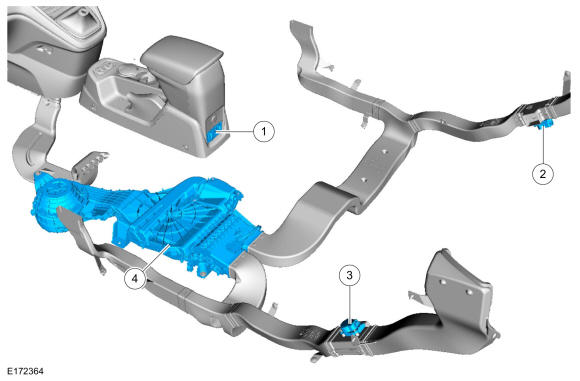

| Item | Description |
|---|---|
| 1 | RHVAC control module |
| 2 | Rear air distribution door actuator RH |
| 3 | Rear air distribution door actuator LH |
| 4 | Rear climate control housing |

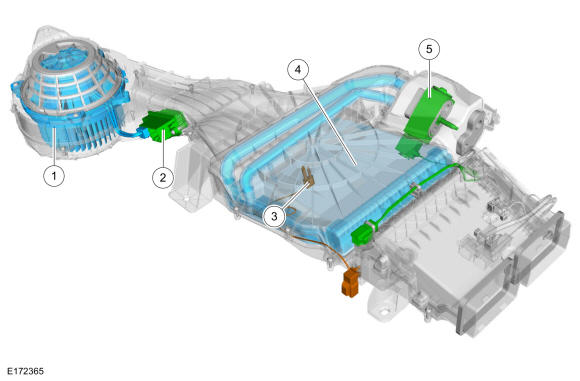

| Item | Description |
|---|---|
| 1 | Rear blower motor |
| 2 | Rear blower motor speed controller |
| 3 | Rear evaporator temperature sensor |
| 4 | Rear evaporator |
| 5 | Rear Thermostatic Expansion Valve (TXV) |

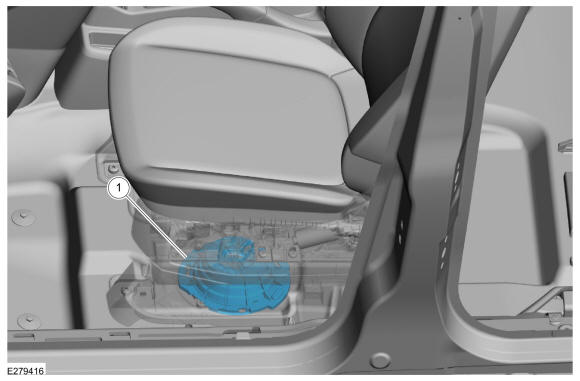

| Item | Description |
|---|---|
| 1 | Rear cabin air filter |

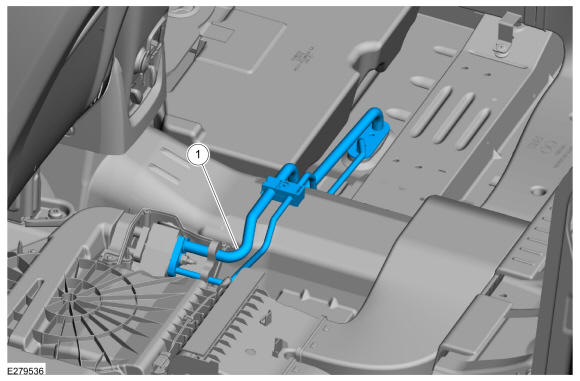

| Item | Description |
|---|---|
| 1 | Rear evaporator front outlet and inlet line |

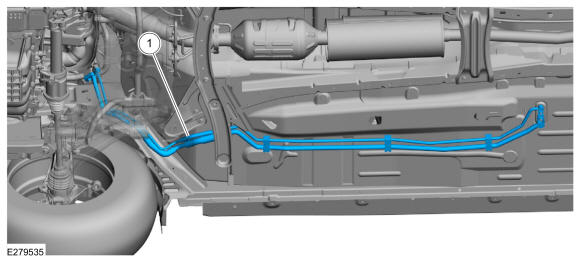

| Item | Description |
|---|---|
| 1 | Rear evaporator rear outlet and inlet line |
