Climate Control Housing: Removal
NOTE:
During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the instrument panel upper section. Refer to: Instrument Panel Upper Section .

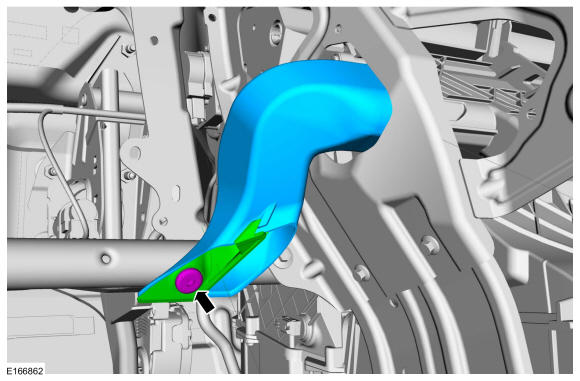

- Remove the retainer and the RH footwell vent duct.

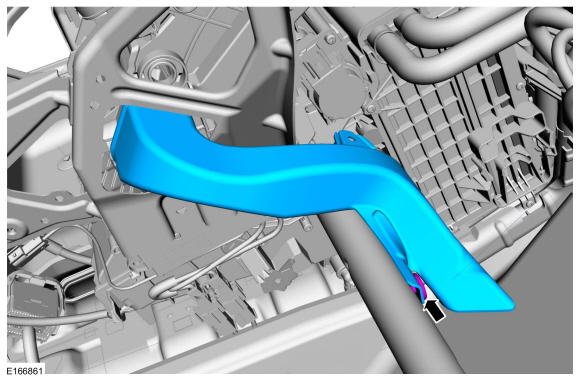

- Remove the retainer, the air deflector and the LH footwell vent duct.

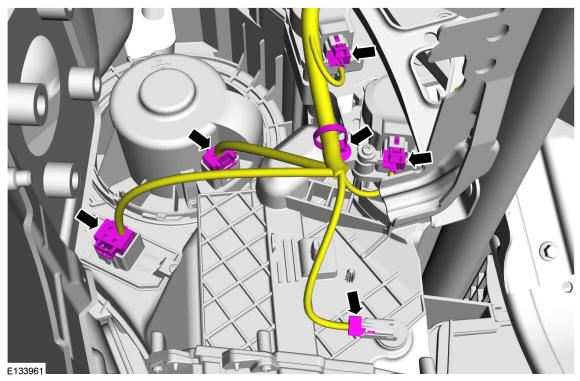

- Detach the retainer and disconnect the electrical connectors.

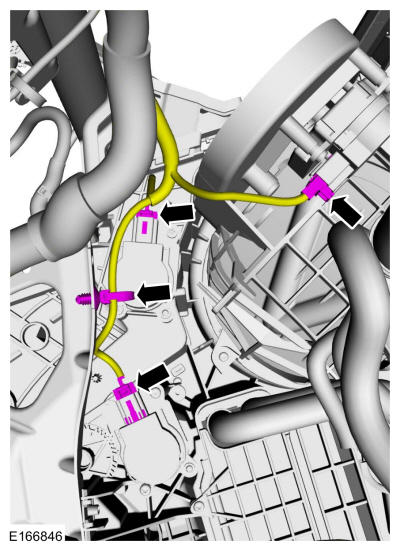

- Detach the retainer and disconnect the electrical connectors.

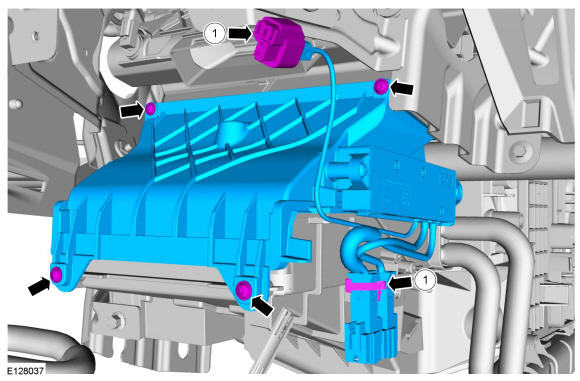

- Remove the retainers and the air plenum bezel.
- If equipped. Disconnect the electrical connectors.

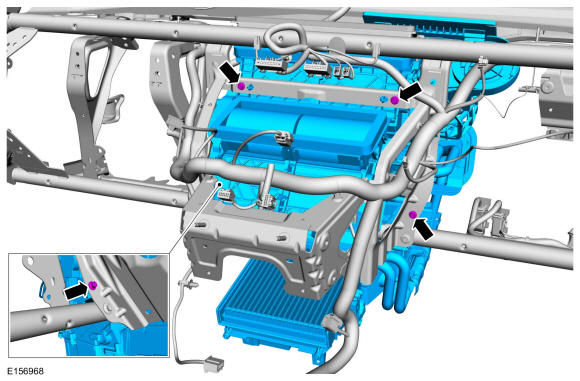

- Remove the bolts and the climate control housing.
Torque: 89 lb.in (10 Nm)
