Cabin Heater Coolant Pump: Removal

NOTE: Removal steps in this procedure may contain installation details.

WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth to prevent the possibility of scalding. Failure to follow this instruction may result in personal injury.

Release the pressure in the cooling system by slowly turning the pressure relief cap one-half turn counterclockwise. When the pressure is released, remove the pressure relief cap.

Courtesy of FORD MOTOR COMPANY
With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

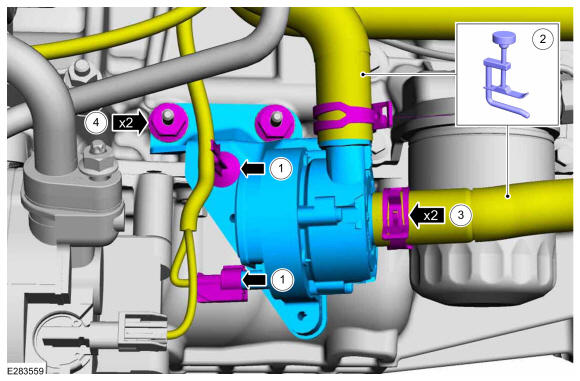

1. Disconnect the electrical connector and the clip and position aside the wiring harness.
2. Install hose clamping pliers on the heater hoses. Use the General Equipment: Hose Clamp(s)
3. Release the clamps, disconnect the heater inlet and outlet hoses.
4. Remove the nuts and the cabin heater coolant pump.
  Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
