2.0L Duratec-HE

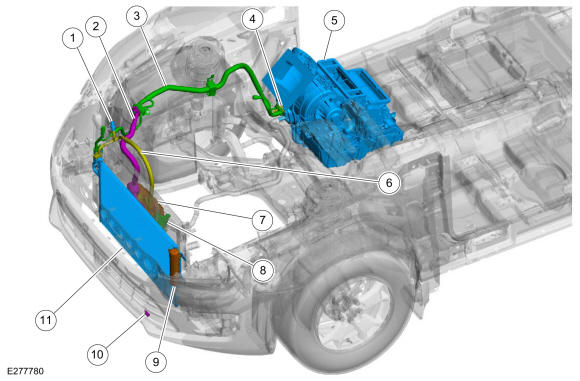

| Item | Description |
|---|---|
| 1 | A/C pressure transducer |
| 2 | A/C compressor inlet line |
| 3 | Thermostatic Expansion Valve (TXV) manifold and tube assembly |
| 4 | Thermostatic Expansion Valve (TXV) |
| 5 | Climate control housing |
| 6 | A/C compressor outlet line |
| 7 | A/C compressor |
| 8 | Cabin heater coolant pump |
| 9 | Receiver drier |
| 10 | Ambient air temperature sensor |
| 11 | Condenser |
