Valve Cover: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the ignition-on-plug. Refer to: Ignition Coil-On-Plug .

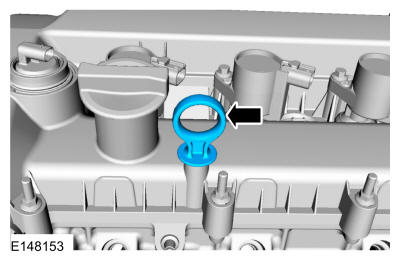

Remove the oil level indicator.

Courtesy of FORD MOTOR COMPANY
Disconnect the crankcase vent tube.

Courtesy of FORD MOTOR COMPANY

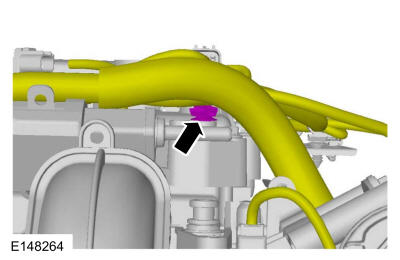

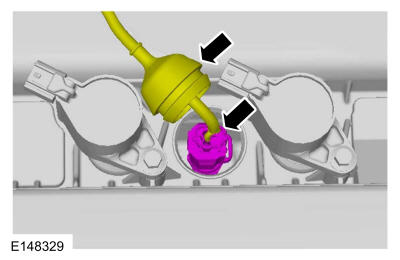

Position out the boot and disconnect the CHT sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Disconnect the wire retainer.

Courtesy of FORD MOTOR COMPANY

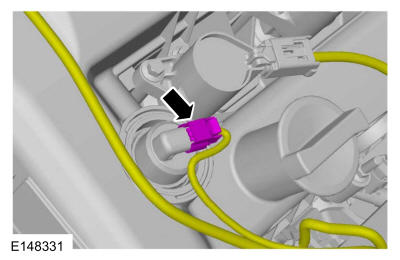

Disconnect the CMP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

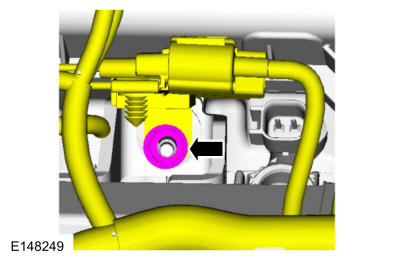

Remove the nut and position aside the radio capacitor.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

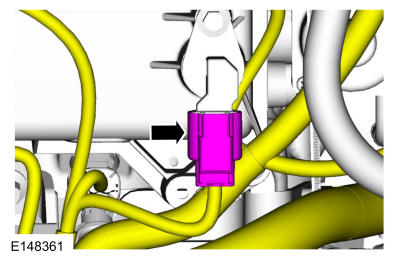

Disconnect the VCT solenoid electrical connector.

Courtesy of FORD MOTOR COMPANY

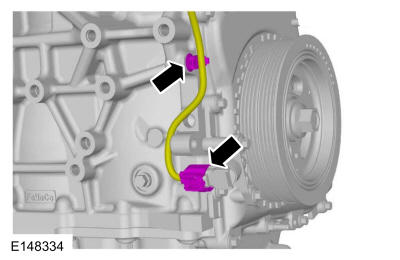

Disconnect the CKP sensor electrical connector and the wire retainer.

Courtesy of FORD MOTOR COMPANY

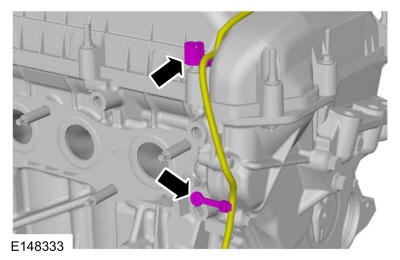

Disconnect the wire retainers.

Courtesy of FORD MOTOR COMPANY

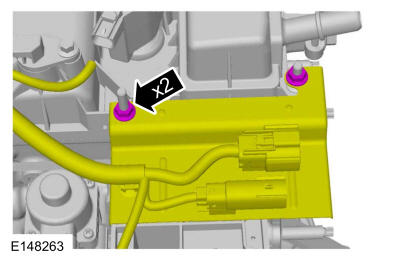

Remove the nuts and position aside the bracket.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

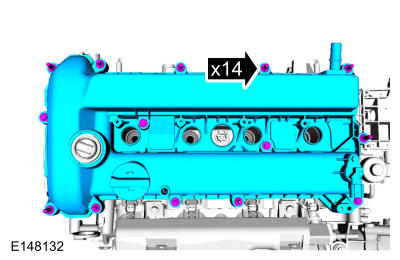

Loosen the bolts and remove the valve cover.

Courtesy of FORD MOTOR COMPANY
Using a special tool, remove and discard the valve cover seals.
Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

Courtesy of FORD MOTOR COMPANY
