Valve Cover: Installation

WARNING: This page is about a different variant/trim than selected.

To install, reverse the removal procedure.

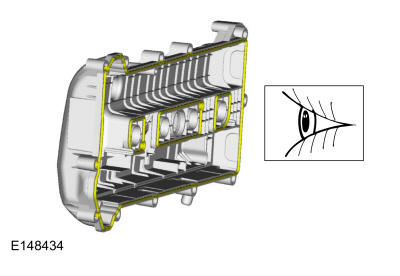

Inspect and if necessary, install new valve cover gaskets.

Courtesy of FORD MOTOR COMPANY
Install new valve cover seals.
Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

Courtesy of FORD MOTOR COMPANY
NOTE: The component must be installed within 10 minutes of applying the sealant.

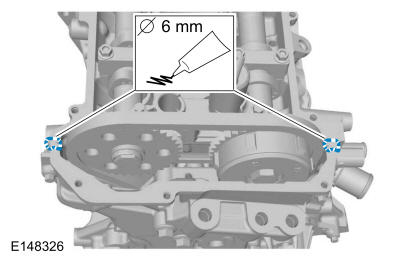

Apply a 6 mm bead of silicone sealant.

Material

: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY

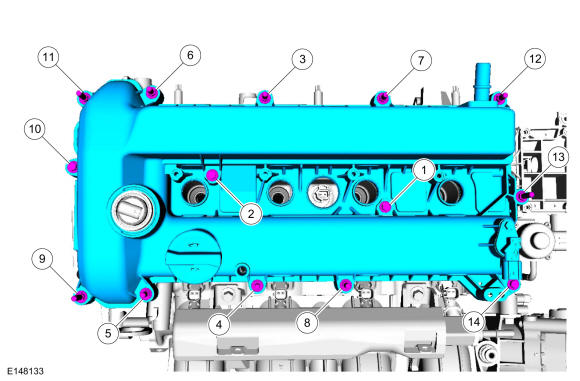

Tighten in sequence shown in illustration.
Torque

: 89 lb.in (10 Nm)

Fig 1: Valve Cover Tightening Sequence

Courtesy of FORD MOTOR COMPANY
