Timing Cover: Removal

WARNING: This page is about a different variant/trim than selected.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the following items:
1. Remover the cowl panel. Refer to: Cowl Panel .
2. Remove the crankshaft pulley. Refer to: Crankshaft Pulley .
3. Remove the engine mountings. Refer to: Engine Mount .
Using the special tool, remove and discard the crankshaft front seal.
Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the accessory drive belt tensioner.

Courtesy of FORD MOTOR COMPANY
Remove the bolt and the idler pulley.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the coolant pump pulley.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the CKP sensor.

Courtesy of FORD MOTOR COMPANY

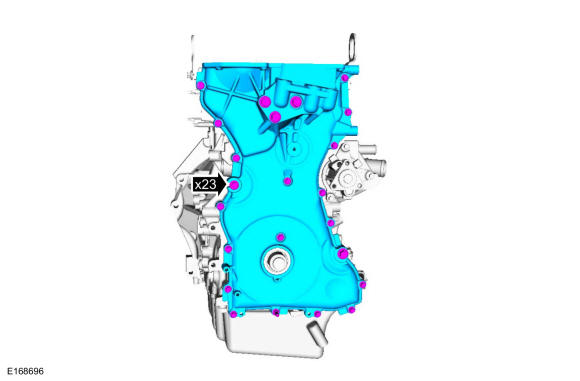

Remove the bolts and the engine front cover.
