Oil Pump: Installation

WARNING: This page is about a different variant/trim than selected.

Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
To install, reverse the removal procedure.
NOTE: Clean the oil pump and cylinder block mating surfaces with Motorcraft® Metal Surface Prep.

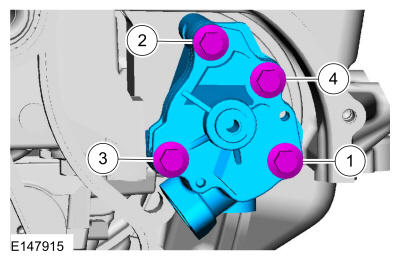

Install the oil pump and the bolts. Tighten in sequence shown in illustration in 2 stages.

Material

: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

Torque

:Stage 1: 89 lb.in (10 Nm)

Stage 2: 177 lb.in (20 Nm)

Fig 1: Oil Pump Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install a new oil pickup tube O-ring.

Courtesy of FORD MOTOR COMPANY
Clean all mating surfaces.
Material

: Motorcraft® Silicone Gasket Remover / ZC-30-A

Material

: Motorcraft® Metal Surface Prep Wipes / ZC-31-B
NOTE: The component must be installed within 10 minutes of applying the sealant.

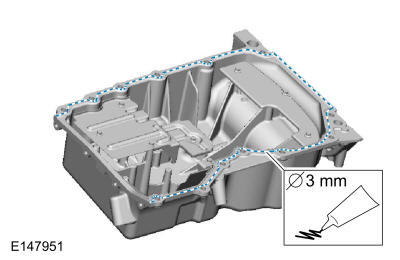

Apply a bead of silicone sealant.

Material

: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the bolts finger tight at this stage.

Install the oil pan and the bolts.

Courtesy of FORD MOTOR COMPANY

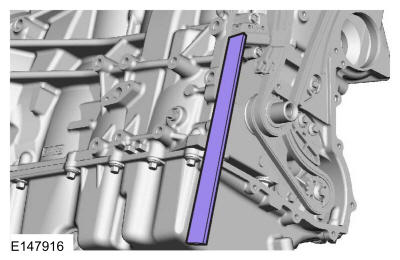

Align the oil pan to the cylinder block.
Use the General Equipment: Round-Ended Steel Rule

Courtesy of FORD MOTOR COMPANY
Tighten the oil pan bolts in sequence shown in illustration.
Torque

: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

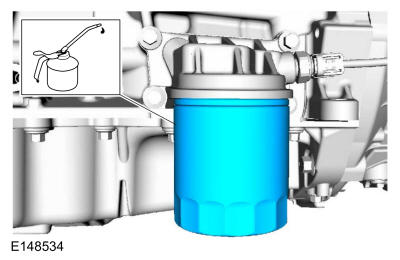

NOTE: Make sure that a new component is installed.

NOTE: Component(s) must be lubricated with clean engine oil.

Install a new oil filter

Torque

: 124 lb.in (14 Nm)

Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil. Refer to: Specifications .
