Oil Cooler: Installation

WARNING: This page is about a different variant/trim than selected.

To install, reverse the removal procedure.

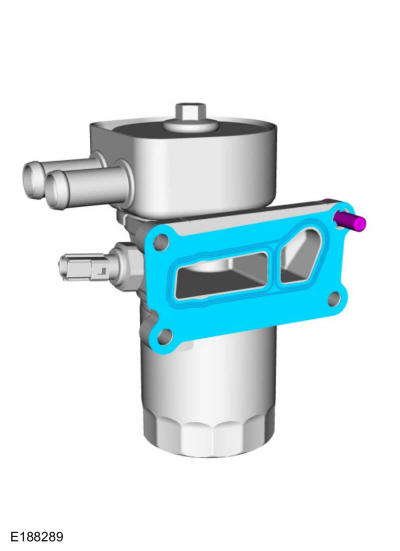

Install a new oil filter adapter gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Check and adjust the coolant level in the degas bottle.

NOTE: Make sure that the engine oil is to specification.

Check and top off the engine oil and coolant. Refer to: Specifications .

Material

: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

Material

: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)
