Intake Manifold: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Jacking and Lifting - Overview .
- Refer to: Air Cleaner .

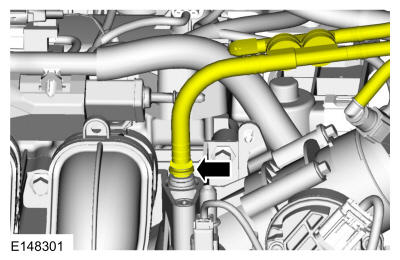

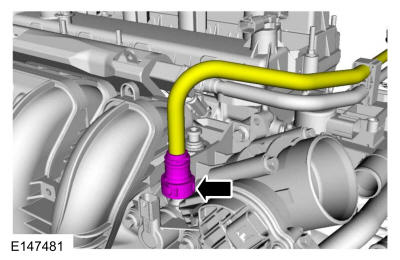

- Disconnect the tube from the intake manifold.

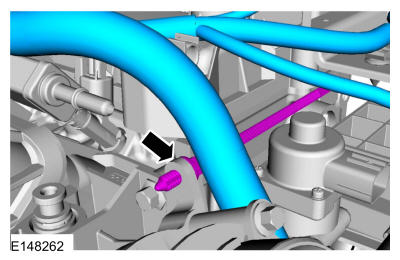

- Disconnect the fuel vapor tube. Refer to: Quick Release Coupling
.

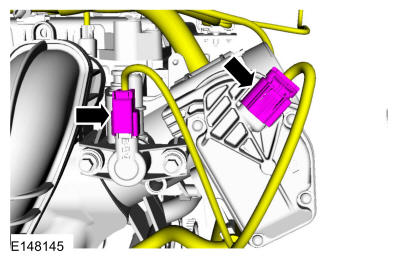

- Disconnect the electrical connectors.

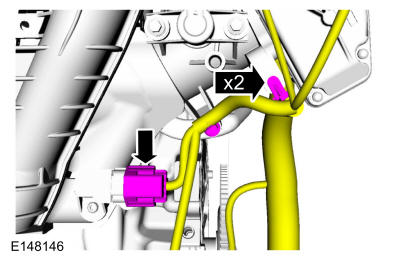

- Disconnect the electrical connector and wire retainers.

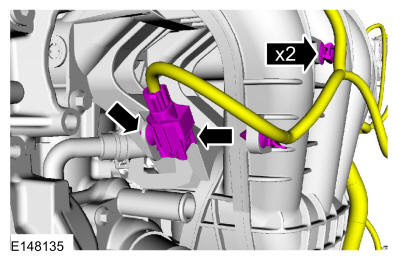

- Disconnect the electrical connector from the intake manifold. Disconnect the electrical connector and wire retainers.

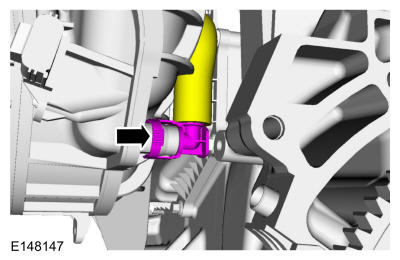

- Disconnect the harness retainer.
- If equipped, remove the screws and the splash shield.
- Disconnect the wire retainer.

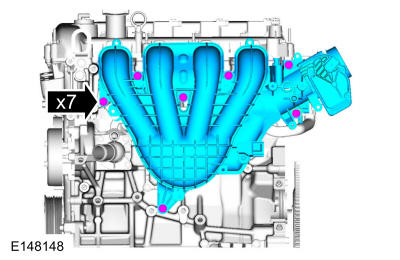

- Remove the bolts and position out the intake manifold.

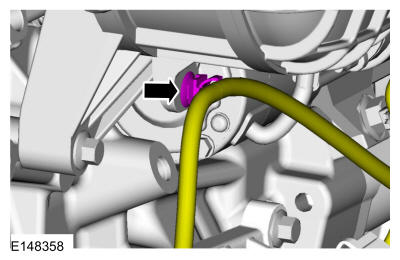

- Squeeze the 2 crankcase vent oil separator tube tabs and disconnect the tube from the intake manifold.
