Engine Mount: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

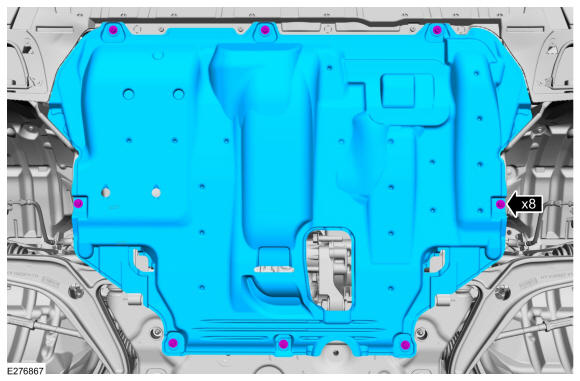

- Remove the fasteners and the engine undershield.

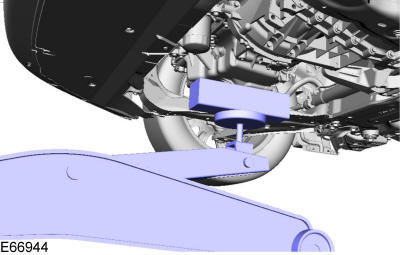

- Using a trolley jack and wooden block, support the engine.
Use the General Equipment: Trolley Jack
Use the General Equipment: Wooden Block

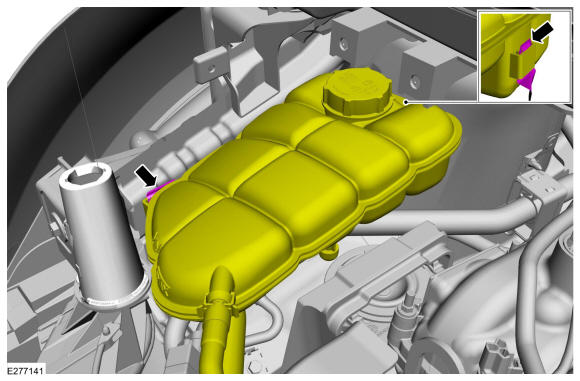

- Release the degas bottle support tabs and position the degas bottle aside.
-

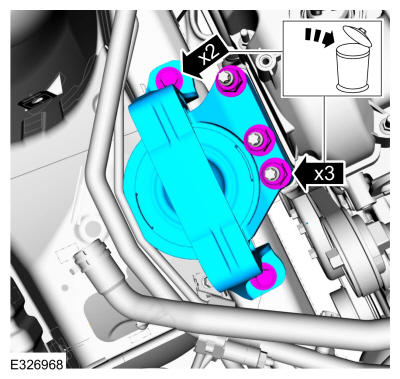

- Remove and discard the engine mount nuts.
- Remove and discard the bolts and remove the engine mount.
